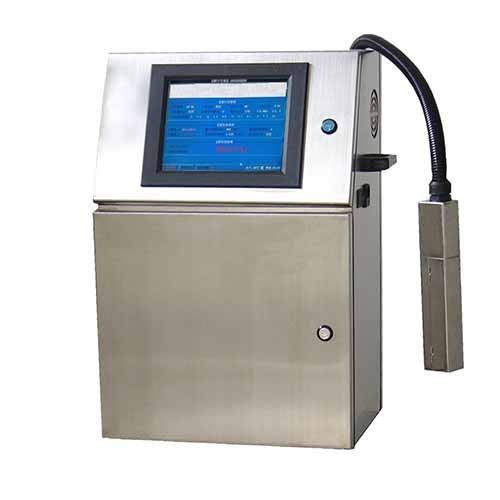

V160 Inkjet printer

Products Feature:

Compact design

Full automatic viscosity control and pressure control

Diaphragm pumps with reliability, longer life, low maintenance cost than gear pump

Electronic control system completely separated design from hydraulic system

PRINTING HEAD

Compatible design, maintenance friendly

Automatic ink stream on when start up and ink stream suck back when turn off

Nozzle size: 58μm standard, 52 to 65μm optional

Easily accessible and can be installed in any position

Distance from print head to print surface 1mm~30mm

Technical Specification:

1) Print Line	1-4 lines
2) Print Dots	figure & letter 5 x 5, 5 x 7, 8 x 10, 8 x 12, 12 x 16, 16 x 16,24 x 24, and user-defined within 32 x 32
3) Memory	1000 message, 1000 graphics
4) Print Speed	800 character per second ( 5 x 7 dots)
5) Letter Height	1-20mm
6) Operating interface	Chinese, English
7) Print objects	Chinese, English, figures, date, time and numbering of reset
8) Material	metal, plastic, glass, wood, tubing, electrical wire and cable etc
9) Font Width	up to 9 times
10) Nozzle Connection Tube	3M
11) Ink Color	black, blue, red etc
12) Consumption of Ink	70 millions character per liter
13) Operating Environment	5-45°C, below 90% (humidity)
14) Power Source	AC220V / 380V /110V; 50HZ /60HZ
