Description

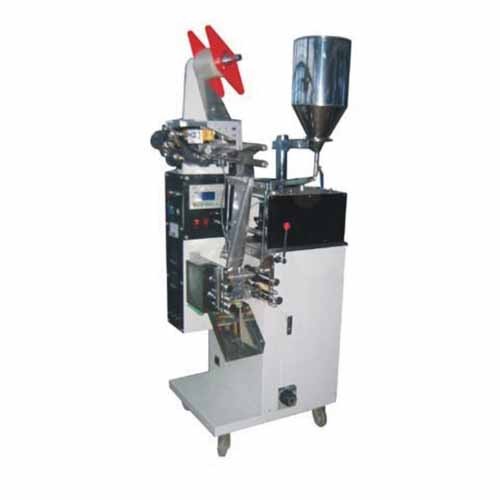

DXDY-N Series Automatic Liquid Packing Machine
Product Feature:
This machine is suitable for packing all kinds of liquid products in the field of food seasoning, drinking, daily chemical and medicine etc. Control filling could be used according to the different density of products. It adopts stepless bag length control. It’s suitable for single Paper/PE, Cellophane/PE, Plated aluminum/PE, BOPP/PE, Nylon/PE, and other heatable sealed laminated film as packaging material.
Technical Specification:
|
Model |
DXDY-20NII |
DXDY-50NII |
DXDY-100NII |
|
Voltage (V/HZ) |
AC 220V/50HZ, or 110V/60HZ |
||
|
Power (W) |
1300 |
1700 |
|
|
Packing volume (ml) |
5-20 |
10-50 |
20-100 |
|
Packing speed (bags/min) |
50-200 |
40-70 |
30-70 |
|
Bag width (mm) |
30-80 |
30-110 |
30-150 |
|
Bag length (mm) |
50-110 |
80-150 |
50-220 |
|
Dimension (L x W x H) mm |
790 x 600 x 1780 |
800 x 700 x 1900 |
1002×860×2000 |
|
Net Weight (Kgs) |
350 |
400 |
400 |
|
Model |
DXDY-500NII |
DXDY-1000NII |
|
Voltage (V/HZ) |
AC 220V/50HZ, or 110V/60HZ |
|
|
Power (W) |
1500 |
1700 |
|
Packing volume (ml) |
50-500 |
100-1000 |
|
Packing speed (bags/min) |
30-70 |
25-60 |
|
Bag width (mm) |
30-150 |
50-200 |
|
Bag length (mm) |
50-220 |
50-250 |
|
Dimension (L x W x H) mm |
1002×860×2000 |
|
|
Net Weight (Kgs) |
400 |
500 |
