Automatic labeling machine is a equipment that applies paper or metal foil labels to a defined packaging container with an adhesive（self-adhesive label). When the sensor signals that the labeled object is ready for labeling, the drive wheel on the labeling machine turns. As the roll label in the device for the tension state, when the backing paper tightly peel plate change direction of operation, the label due to its own material has a certain degree of stiffness, the front end is peeling off, ready to labeling. At this time, the labeling object happens to be located in the lower part of the label, under the action of the labeling wheel, to achieve synchronous labeling. After labeling, the sensor below the roll label sends a signal to stop running, the drive wheel comes to a stop and a labeling cycle finished.
Labeling
machine structure:
1.
Unwinding wheel. The passive wheel is used to place the roll label. Usually
equipped with adjustable friction brake device, the purpose is to control the
speed of the reel and tensioning force, to maintain a smooth delivery of paper
label.
2.
Buffer wheel. Connected with the spring. Can swing back and forth. The purpose
is to absorb the tension of the roll material when the device is started to
keep the material in contact with the rolls to prevent material breakage.
3.
Guide roller. It is composed of two up and down, which plays the role of
guiding and positioning of the roll material.
4.
Drive roller. Composed of a group of active friction wheels. Usually one is a
rubber roller, one is a metal roller, and the bottom paper passes between them.
Role is to drive the roll material, to achieve normal labeling.
5.
Reel wheel. The active wheel with friction transmission device, the role is to
rewind the bottom paper after labeling. Receiving the rotation of the paper
wheel to receive the paper with the drive wheel for the paper does not
interfere with each other, synchronous transmission by the friction device
adjustment.
6.
Peel plate. One end of the off-board angle (generally less than 30 °), the purpose
is to make the bottom of the paper in the peeling plate to change direction,
the label is easy to label, off the bottom of the paper, to achieve contact
with the labeling object.
7.
Labeling roller. The label is evenly and flatly applied to the object to be
labeled.

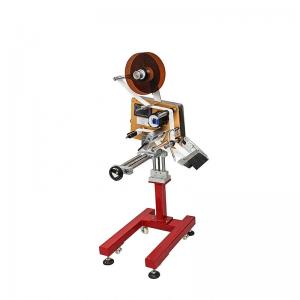

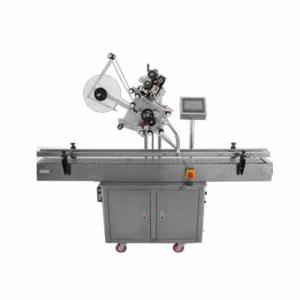

The labeling machine has sem-automatic type and fully automatic type, it also can be installed on the production line. We offer various models of automatic labeler machines, which fit for round, flat, or irregular shape packages, we also welcome special made, for more information, please send us an inquiry now!
