Description
Feature and description of the machine

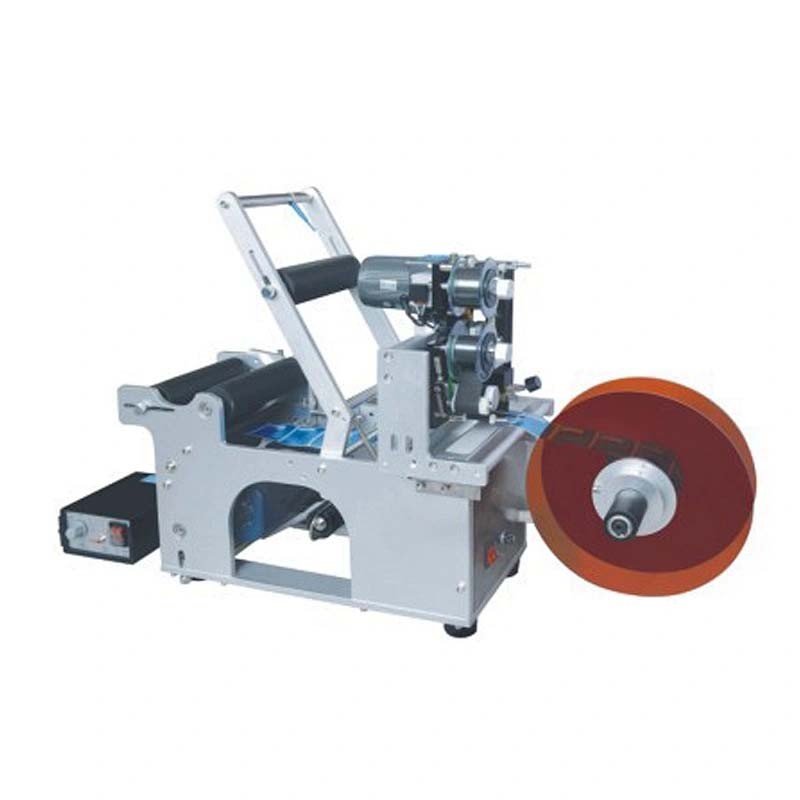

Semi-automatic round bottle labeling machine is suitable for round bottle, circular tank, cylinder self-adhesive labeling, suitable for PET bottles, plastic bottles, glass bottles, metal bottles round bottle labeling, widely used in cosmetics, food, beverage, pharmaceutical and other industries, greatly enhance the productivity and quality labeling.
1, wide application, can meet the 10-100mm diameter range cylinder labeling.
2, high precision end labeling, label place deviation less than 0.5mm.
3, the use of clever extrusion device feeding, just put items, pull the handle to complete labeling.
4, the position adjustment, different work piece labeling simple switch.

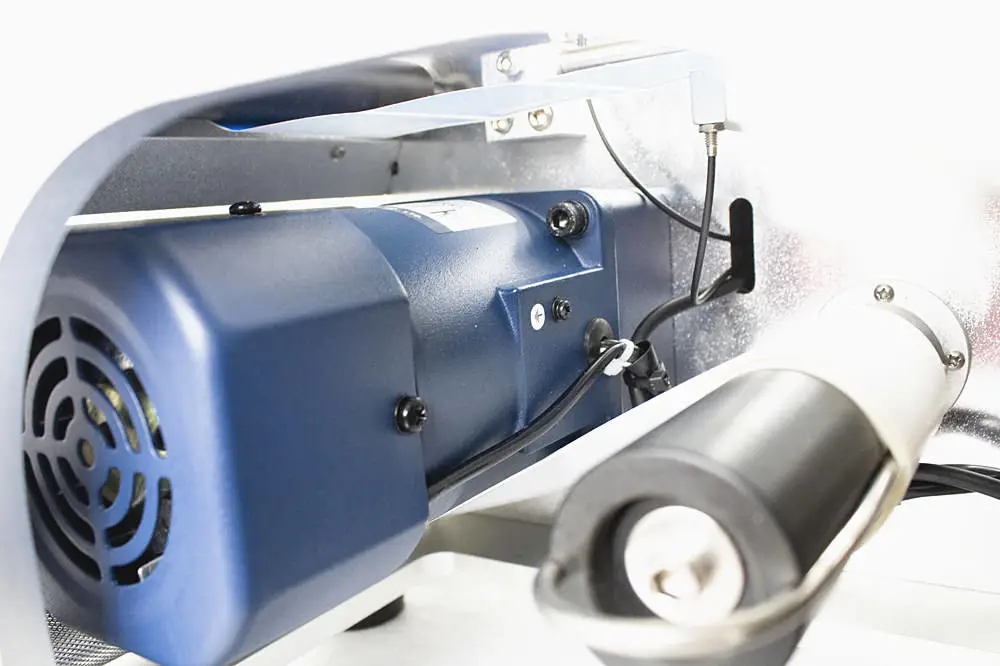

5, using synchronous belt traction, mechanical stability greatly improved.
6, desktop design, streamlined structure, compact appearance, powerful.
7, using the advanced electric eye detection sensitivity, object, label.
| Model | MT-50C |
| Voltage | AC220V/50hz |
| Power | 120W |
| Labeling speed | 25-30pcs/min |
| Precision | ±0.5 |
| Label roll diameter | 75-250mm |
| Bottle diameter | 20-120mm |
| Max Label size | W150*L230 |
| Machine size | 650*450*450mm |
| Machine weight | 28kg |
| Note：Tags need to play code, can be customized. | |
