Description
I.Performance Characteristics
1.The whole machine adopts PLC control, man-machine interface
2.Photoelectric automatic tracking system
3.Sealed area independent temperature display control, new vertical seal heating
4.A variety of packaging, a set of equipment can be used for different sizes of product packaging
5.Machine stainless steel panel
II.Scope of application
Automatic pillow packing machine is mainly suitable for packaging various irregular items and sticky solid items. For example, food: preserved fruit, sausage, squid, cake, egg roll, instant noodles, jelly, soft candy, etc.;other categories: towels, wipes, set of toothpaste toothbrushes and other hotel supplies, tape, hardware, pocket notebooks, medicines, etc.
III. Technical Parameters

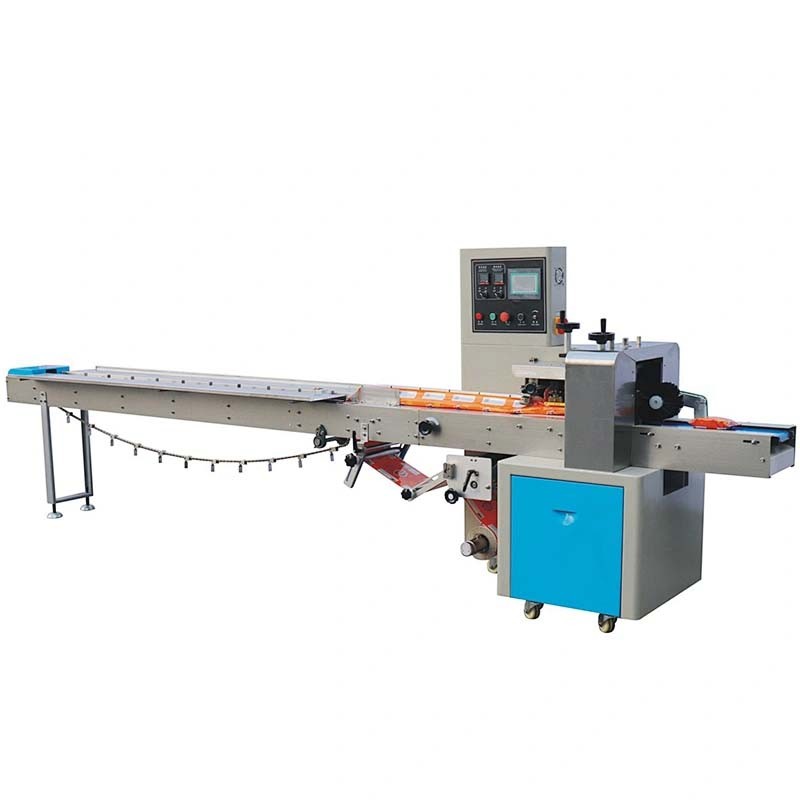

| Model | ZXJ-280X |
| Packing speed | 30-150bag/min |
| Packing size（mm） | L60-280 W20-100 H0-25/25-50 |
| Film width（mm） | ＜280mm |
| Film thickness（mm） | ≥0.02 |
| Power | 2.5KW |
| Machine size（mm） | 3870*700*1520mm |
| Weight | 500KG |
| Machine package | 2.2CBM, 2CASES |
| Packing material | OPP/PP.OPP/CPP.PT/PE.KOP/CPP.PT/PE/.AL/PEetc |
