Description

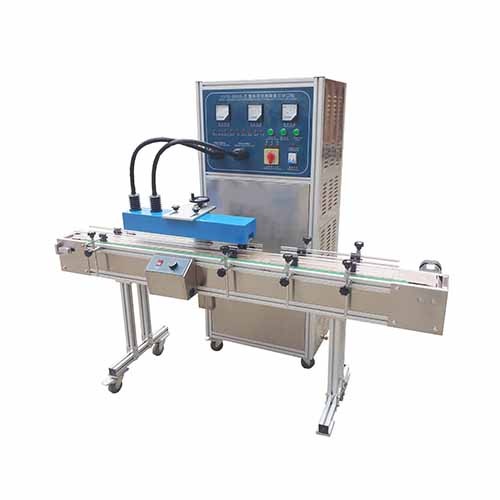

LGYS-2500B Continuous electron tube water-cooling induction sealing machine
Product Feature:
This series of machine of high voltage control circuit, induction tube head adopts concave induction structure. Its characteristic is output power, speed, sealing good stability, corrosion resistance is strong. Suitable to be used at the environment of acid, high humidity and dust more harsh (such as pesticides and drinks factories, etc.) for a long time. It can be used either independently or with single line.
Technical Specification:
|
Model |
LGYS-2500B |
|
Voltage |
AC 220V±10% 50HZ |
|
Power |
2500 W |
|
Current work |
≤12 ( A ) |
|
Work Type |
continuous conveying |
|
Cooling Way |
water circulation cooling |
|
Type |
Floor |
|
Machine body material |
stainless steel + aluminum |
|
Sealing diameter |
Φ20～Φ50 ( mm) |
|
Bottle height |
40～300 ( mm ) |
|
Sealing speed |
0～18 ( m/min) |
|
Body Dimension (L x W x H) |
68×57×140 ( cm ) |
|
Conveyor Dimension (L x W x H) |
54×46×130 ( cm ) |
|
Body Net Weight |
188×63×98 ( cm ) |
|
Conveyor Net Weight |
104 ( kg ) |
|
60 ( kg ) |
