Description

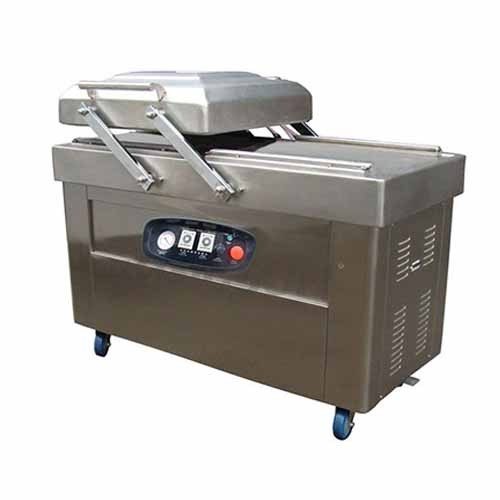

DZ-SC Series Double Chambers Vacuum
Packaging Machine
Product Feature:
DZ-SC series double chambers vacuum packaging machine can finish the whole
programs of vacuum extraction, sealing, printing, cooling and exhaust
automatically. The products after packing can be prevented from oxidation,
going mould, insects or getting damp, thus can be kept fresh for longer time.
Technical Specification:
|
Model |
DZ-500/2SC |
DZ-500/4SC |
DZ-600/2SC |
DZ-600/4SC |
|
Voltage (V/Hz) |
AC 220/60 380/50 |
|||
|
Motor Power (W) |
1500 |
|||
|
Sealing Power (W) |
750 |
750 |
1000 |
1000 |
|
Ultimate Vacuum Pressure (Kpa) |
1 |
|||
|
No. of Sealing Bar for Each Chamber |
2 |
4 |
2 |
4 |
|
Sealing Length (mm) |
500 |
600 |
||
|
Sealing Width (mm) |
10 |
|||
|
Chamber Dimension (L×W×H) (mm) |
560×540×45 |
580×680×45 |
660×540×45 |
700×680×45 |
|
Vacuum Pump Rate (m3/h) |
40 |
|||
|
Material of Vacuum Chamber |
Stainless Steel |
|||
|
External Dimensions (L×W×H) (mm) |
1250×590×980 |
1250×810×1050 |
1460×590×980 |
1460×810×1050 |
|
Net Weight (Kg) |
270 |
280 |
320 |
350 |
