Description
Summary:

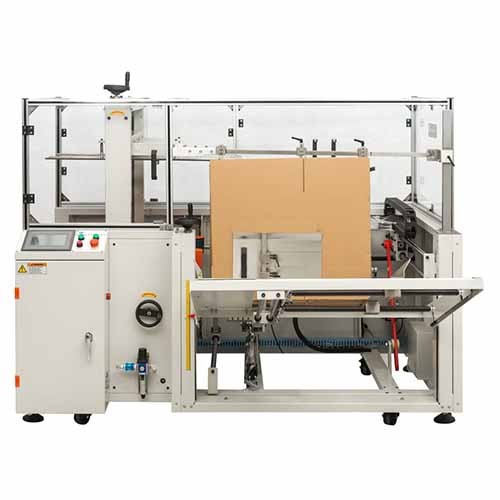

Vertical storage is adopted for storaging carton blanks,for which carton blanks can be added at any time without stopping the machine;It's suitable for forming and sealing cartons of the same size.If carton size need to be changed,the operator should adjust the machine manually (finishing in 2-3 minutes);It's rationally designed so that the forming,folding and sealing process are accomplished simultaneously; All the parts are precise and durable,without causing any vibration in running.Running steadily with long life;Light in weight,high performance and speed.
Model
DKX4540
Power supply
220V/380V 50/60HZ
Max. packing dimension
450(L)400(W)* 400(H) mm
Min. packing dimension
250 (L)*150 (W)*150 (H) mm
speed
1-10 box/min
Air source
＞500L/min,0.4-0.8 MPa
Tape
W48mm. W60-75mm*L1000
Machine size
2000 (L)*1900(W)*1450 (H)mm
Machine weight
550 KG
