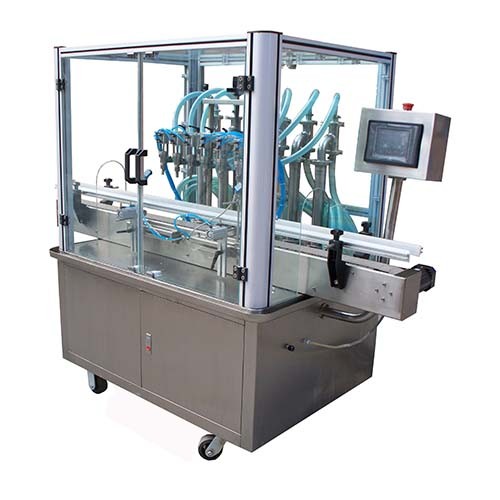

YT-Series Automatic Piston Type Liquid Filling Machines

Description

Introduction：

Is widely used for filling all kinds of fluid daily chemical industry, food, medicine, oil. For example: liquid, shampoo, shower gel, edible oil, pesticides, fruit juice, Lubricating oil, liquid soap, disinfectant, detergent，honey, not very sticky liquid or other materials.

Operating principle:By the reciprocating motion of the pistons in the material cylinders of the Filling Machine, negative pressure produces in the front chamber of the cylinder so that material could be pumped. The stroke of the cylinder is controlled by a signal valve so as to adjust filing amount and to achieve accurate filling results.

Property:The Filling Machine with extra functions is designed and manufactured by our factory with reference to the same kind of foreign machines. This machine is simpler and easier in operation, error correction, adjustment, cleaning and maintenance.

With automatic transmission, automatic filling, no bottle no filling, bottle positioning, prevent drip, lifting filling, and other functions. Can be equipped with protective cover.

The part contacting materials is made of 304 stainless steel.

Material contact parts can be customized SS316.

can install hopper. Hopper can be installed liquid level automatic control system.

Technical Parameter:

Model	YT2T-2G	YT4T-4G	YT6T-6G	YT8T-8G	YT10T-10G	YT12T-12G
Filling heads	Two Head	Four Head	Six Head	Eight Head	Ten Head	Twelve Head
Powe supply	220/110V 50/60Hz
Power	1kW	1kW	1.5kW	1.5kW	2kw	2kw
Air pressure	0.4-0.6MPa (Inside the machine is equipped with gas storage barrels)
Filling speed	0-20 bottles/min	0-30 bottles/min	0-40 bottles/min	0-50 bottles/min	0-60 bottles/min	0-80 bottles/min
Filling accuracy	≤±1%
Filling volumes range	20-100ml,30-300ml,50-500ml,100-1000ml,500-2000,700-3000ml 1000-5000ml
Conveyor line length	2M
Dimension	20009001750	200010001750	300010001750	350011001750	400011001750	450011001750
Weight	150KG	350KG	450KG	550KG	650KG	750KG
