Description
Products Feature:

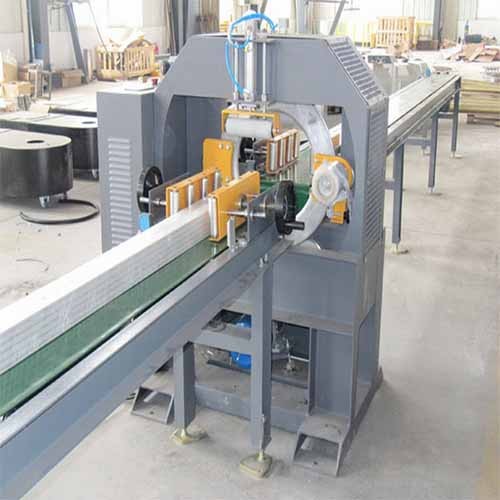

T400CS Horizontal wrapper is an ideal solution for wrapping stretch film on the length product similar Aluminum shape, timber, textiles etc. Stretch film wrapping provide a perfect tightness, protect the product from damage during transportation.
Technical Specification
|
Model |
T400CS |
|
|
Inner diameter |
Φ400mm |
|
|
Wrap speed |
80rpm |
|
|
Wrap size(W×H×L) |
250 × 250 × ≥600mm |
|
|
Transport speed |
8-15 m/min |
|
|
Dimension and material of packing |
Material |
LLDPE stretch film、VCI Anti-rust Film、woven belt、Plastic film etc. |
|
Bore |
Φ38、Φ50、Φ75mm |
|
|
External diameter |
Φ200mm |
|
|
Breadth |
150mm |
|
|
Power |
0.75Kw |
|
|
Pneumatic system |
0.4-0.8Mpa，800ml/min |
|
|
Conveyor （Optional） |
Roller conveyors、Rubber belt conveyors、Chain conveyors、Chain-plate conveyors |
|
