Description
1. Applications:

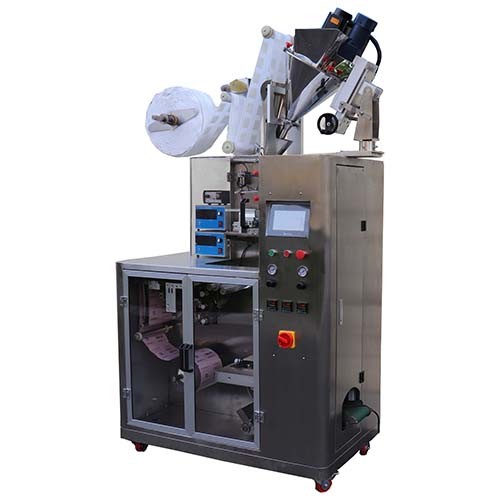

MD-CF40-----the standard model, adopts the fully ultrasonic sealing, specially designed to pack drip coffee bag with envelope.
Widely applications for drip coffee filter bag, rectangular nylon bag, non-woven fabrics, and PLA fiber coffee etc which can be sealed by ultrasonic method.
2. Advantages:
l SLANT SCREW FEEDER, to avoid coffee blocking, high accuracy and easy to adjust.
l Inner 3-SIDE FULLY ULTRYSONIC SEALING, to make the better cutting and sealing performance.
l Imported MITSUBISHI PLC, with WEINVIEW touch screen, for easy operation.
l Equips with SAFETY GUARD DOOR to protect the machine, to provide the safety precautions for the workers as well.
1. Technical Specifications:
|
Item |
Descriptions |
|
Driven |
Pneumatic |
|
Capacity |
About 40 bags/min (determined by coffee materials and film) |
|
Inner Film Width |
180 mm (75*90mm) |
|
Outer Film Width |
200 mm (100*125mm) |
|
Customized Bag Size |
Available (pls tell us your size in advance) |
|
Sealing Method |
Full ultrasonic sealing for inner bag; Heat sealing for envelope |
|
Sealing Type |
3-sde sealing |
|
Filling Range |
8~15 g |
|
Feeding System |
Slant auger + mixer |
|
Feeding Capacity |
5 Kg |
|
Air Consumption |
0.8MPa, 0.3M3/minute |
|
Power |
3.7 Kw |
|
Voltage |
220V, single phase; 50HZ; |
|
Dimension |
L 1350* W 850* H 2200 mm |
|
Reference Weight |
560 kg |
