Description
Product Description

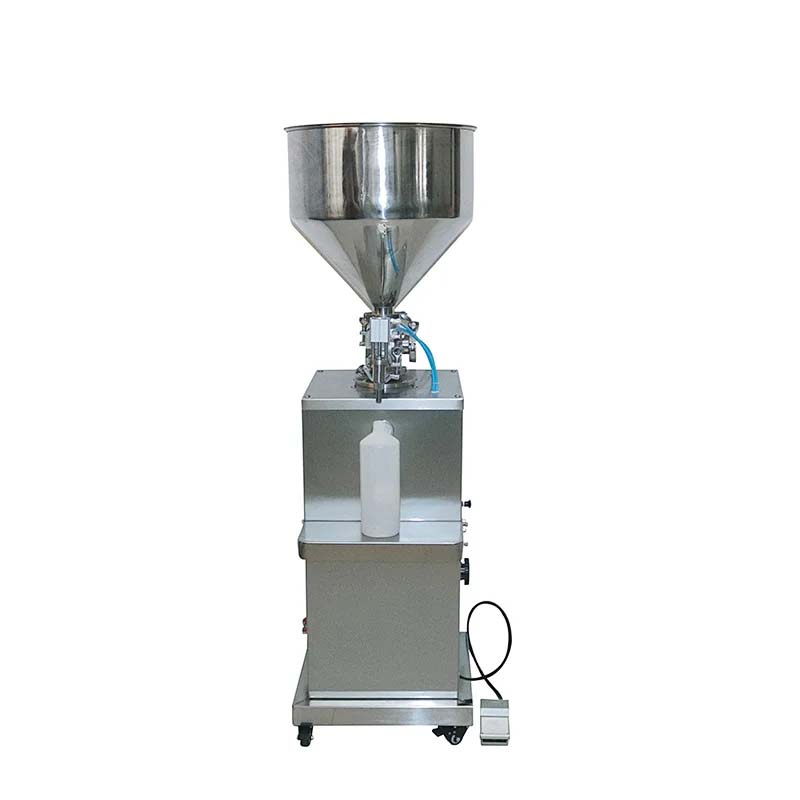

GYL series pneumatic filling machine is widely used: it is applicable to the quantitative filling of paste and liquid (5-1000kg) in the industries of daily chemicals, foodstuffs, pharmaceuticals and chemicals, etc. The machine has reasonable structure, reliable performance and accurate dosing. It has reasonable structure, reliable performance and accurate dosing. The power part adopts pneumatic structure. The shell and the part contacting with filling materials are made of stainless steel, with anti-rust and anti-corrosion properties. The pistons are made of polyethylene. The pneumatic part adopts imported parts, which meets the GMP requirements and can be customised according to users' needs. Filling volume and filling speed can be adjusted within a certain range.
Technicals:
|
Model |
GYL-100 |
GYL-300 |
GYL-600 |
GYL-1000 |
|
Filling volume |
5-100ml |
30-300ml |
60-600ml |
120-1200ml |
|
Filing precision |
<±1.5% |
<±1.5% |
<±1.5% |
<±1.5% |
|
Production capacity |
1-30pcs/min |
1-30pcs/min |
1-30pcs/min |
1-30pcs/min |
|
With gas consumption |
20.1m3/min |
20.1m3/min |
20.1m3/min |
20.1m3/min |
|
Equipped with air pressure |
0.4Mpa |
0.4Mpa |
0.4Mpa |
0.4Mpa |
|
Dimensions(mm) |
442x440×1580 |
442x440x1580 |
442x440x1580 |
442x440x15 |
|
Weight |
50kg |
50kg |
50kg |
50kg |
