Description
Product Description

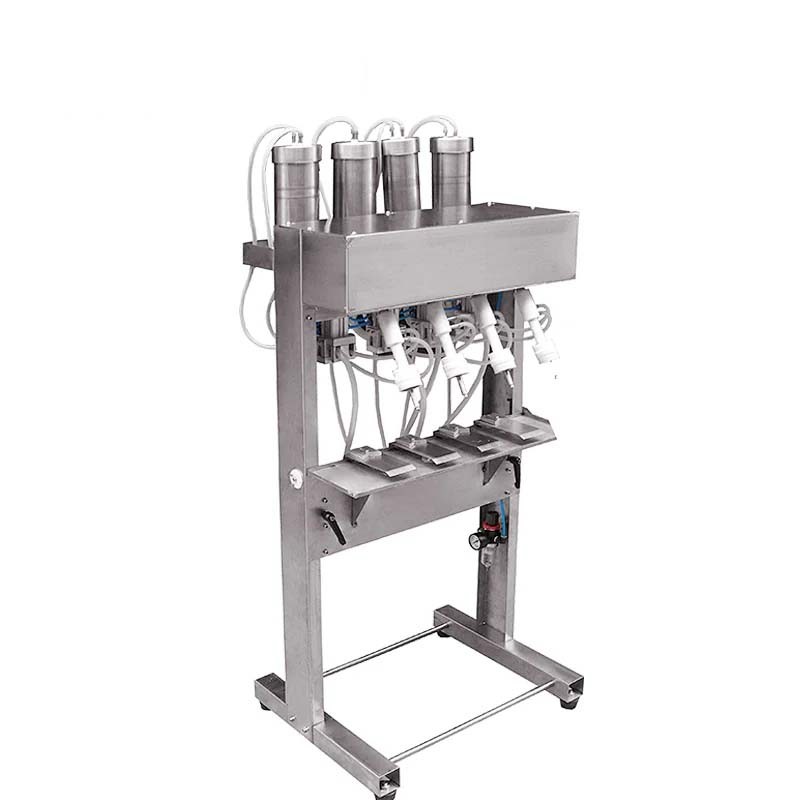

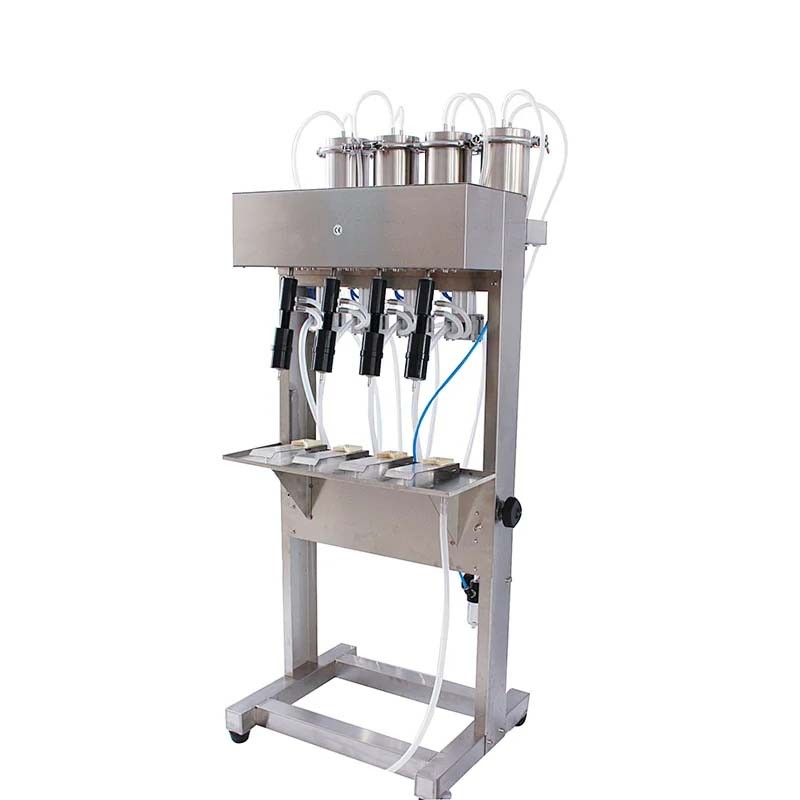

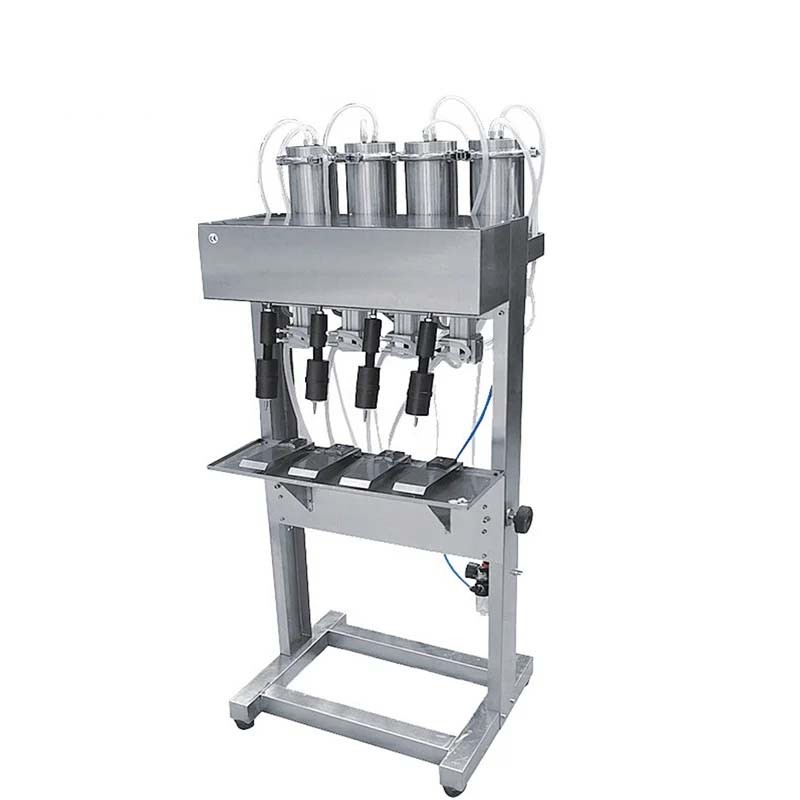

Perfume filling machine
YT
series double heads liquid level control liquid filling machine is a negative
pressure semi-automatic filling machine, mainly used for filling sanitary
water, perfume, lubricating oil, detergent and other liquid materials. There
are double-head and four-head models. The device has the measuring performance
of constant liquid level, adjustable liquid height, compact and reasonable
structure, simple operation and convenient maintenance. The material contact
parts are made of 304 stainless steel. It is suitable for filling glass bottles
and plastic bottles which are not easy to be deformed after vacuuming.
Technical data:
|
Model |
YT-4 |
|
Bottle height |
≤350mm |
|
The maximum diameter of the bottle |
≤φ35mm |
|
The minimum diameter |
≥φ4.5mm |
|
Adjustable high level |
15-50mm |
|
Room temperature |
0-30ºC |
|
Pumping rate |
5.5 L/S |
