Description
Summarize:

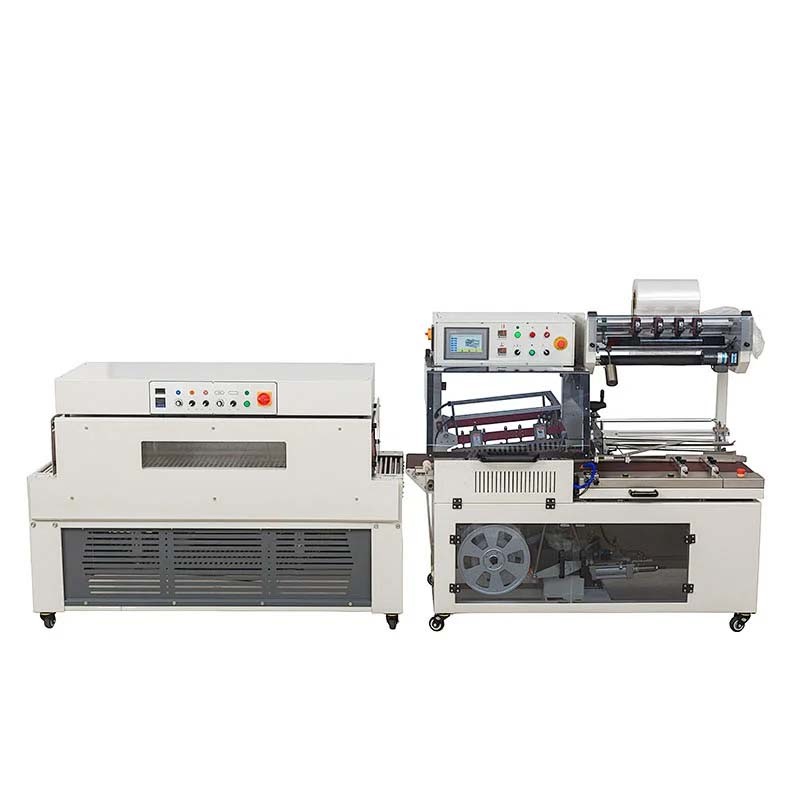

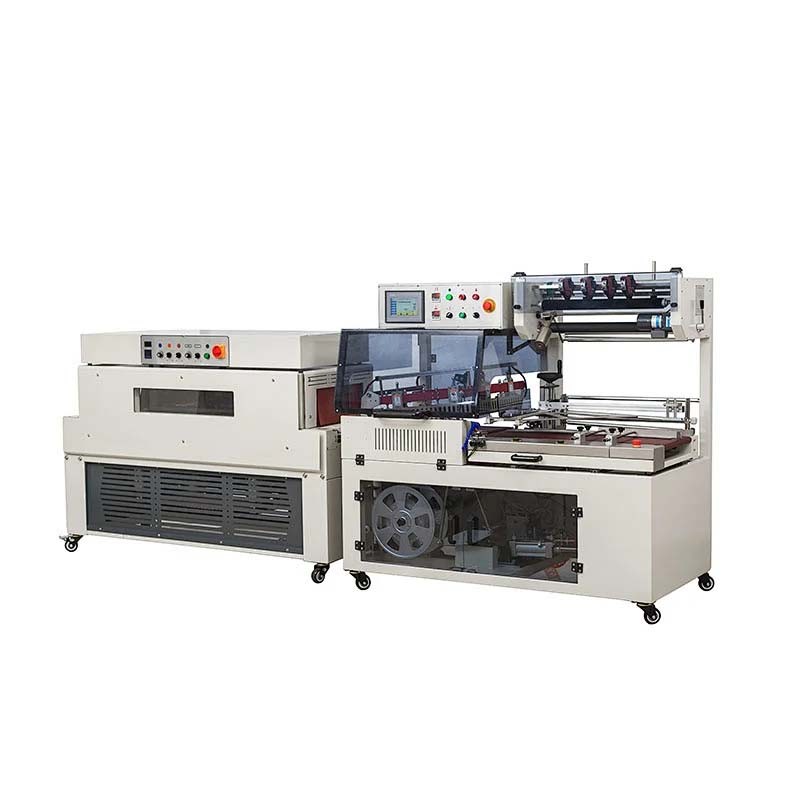

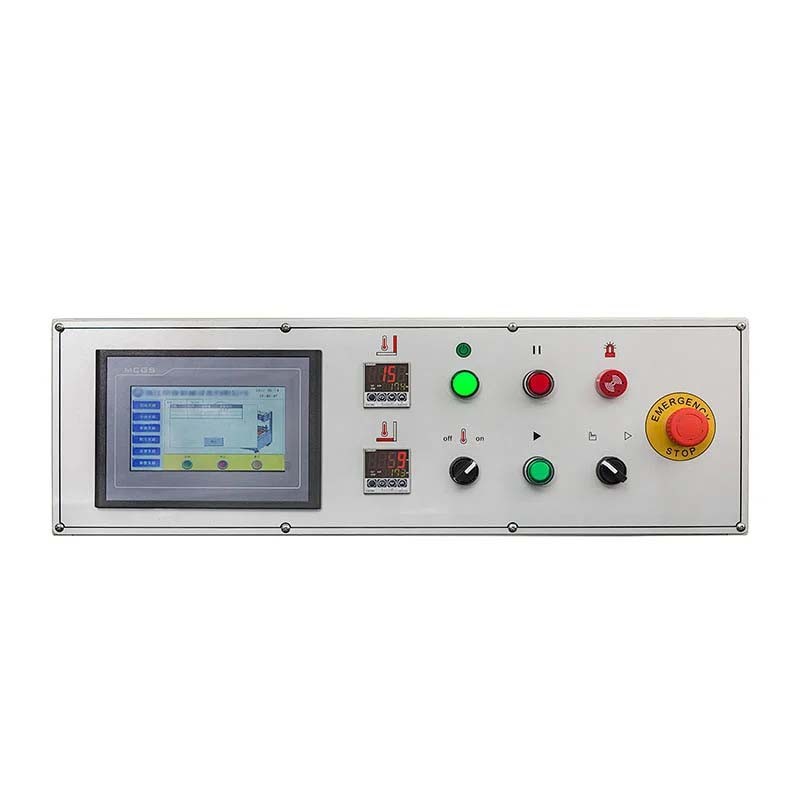

Based on DQL 5545 L sealer, add a touch screen
and improve the speed. That's an intelligent type design for high requirement
customers. The shrinking machine adopts a circular heating tube with a fan
motor to create a perfect wind circulation system. By the way, the conveyor can
be customized to 1.2m and 1.5m.
About Brand
1. Panasonic" sensors
2."airtac" cylinder
3.Omron" programmable logic
controller (PLC),
4."Omron" temperature controller
5."Airtech" air filter
Optional:
conveyor connecting function can work with a
very small products.(≤12cm)
Specification:
DQL5545SG:
|
Model |
DQL5545SG |
|
Max packing size(mm) |
L+2H≤550,W+2H≤450,H≤140 |
|
Max sealing size(mm) |
L550×W450 |
|
Power(KW) |
2.2 |
|
Capacity |
0-40 pcs/min |
|
Voltage |
220V 50/60HZ |
|
Sealing temperature |
180ºC-250ºC depends on the thickness of the film and environment temperature |
|
The thickness of film(mm) |
0.015-0.05 |
|
Packing material |
POF PVC |
|
Machine weight(kg) |
320 |
|
Machine size(mm) |
L1760×W940×H1580 |
DSC4525L
|
Model |
DSC-4520 |
DSC-4525L |
|
Power source |
380V 50-60Hz |
380V 50-60Hz |
|
Power |
12.8KW |
13.2KW |
|
Conveyor speed |
0-16m/min |
0-16m/min |
|
Tunnel size(L*W*H) |
1200*450*200mm |
1500*450*250mm |
|
Conveyor loading |
10kg |
10kg |
|
Machine size (L*W*H) |
1500*700*1260mm |
1800*700*1300mm |
