Description
Summary:

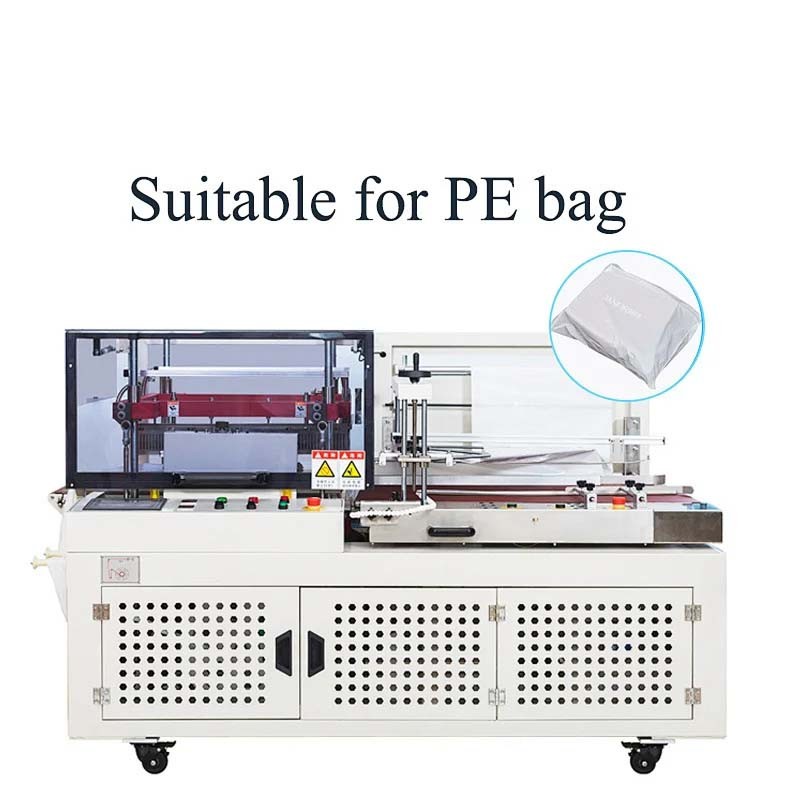

The automatic DQL6560PEG L type sealer is an
integrated automatic production line.
Products are fed by conveyor into
the plastic sheeting and cut automatically.

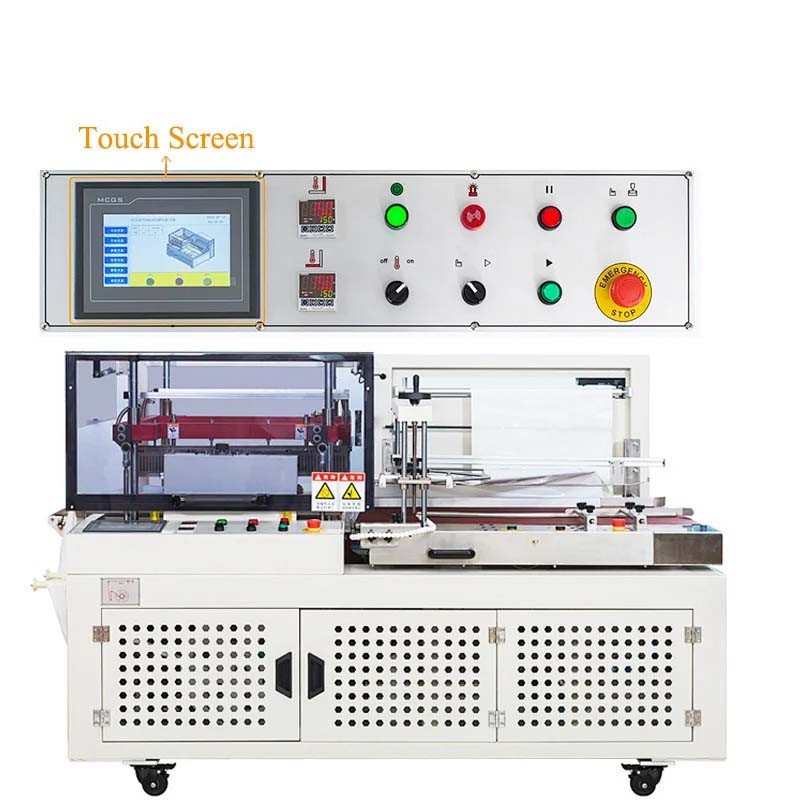

It has a PLC
program control as well as a specially designed protector on the
cutting head.
Center fold POF/PVC film is used to automatically dispense,wrap,and seal over
your disired product. Once the product is sealed it
then automatically runs through
the thermal shrink tunnel where the shrink film is heat shrunk tightly around
product.It can cut PE film.
Specification:
|
Model |
DQL6560PEG |
|
Voltage |
220V 50HZ/60HZ |
|
Power |
3.2KW |
|
Working table height |
810mm |
|
Conveyor loading |
30kg |
|
Air pressure(Kg/cm2) ) |
5 |
|
Capacity |
0-30pcs |
|
Packing Material |
PE(0.03-0.06mm) POF(0.012-0.038mm) |
|
Max packing size(mm) |
W+2H≤700mm,H≤230mm |
|
Min packing size (mm) |
L>=120mm |
|
Max Sealing size |
L550*W500*H220mm |
|
Max packing size |
L100*W60*H5mm |
|
Machine size |
L2064*W1650*H133 |
