Product Description：

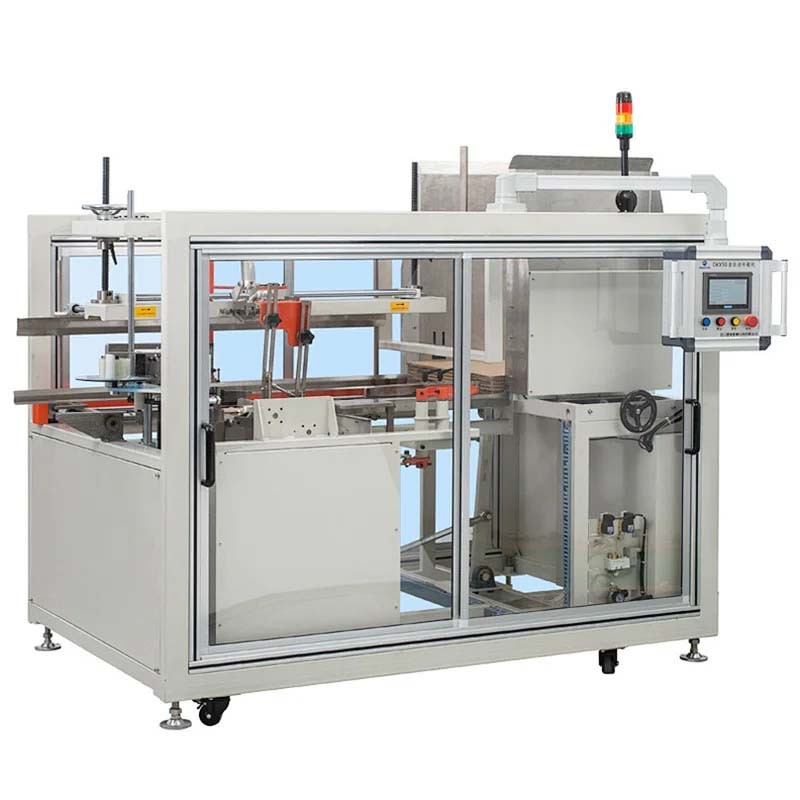

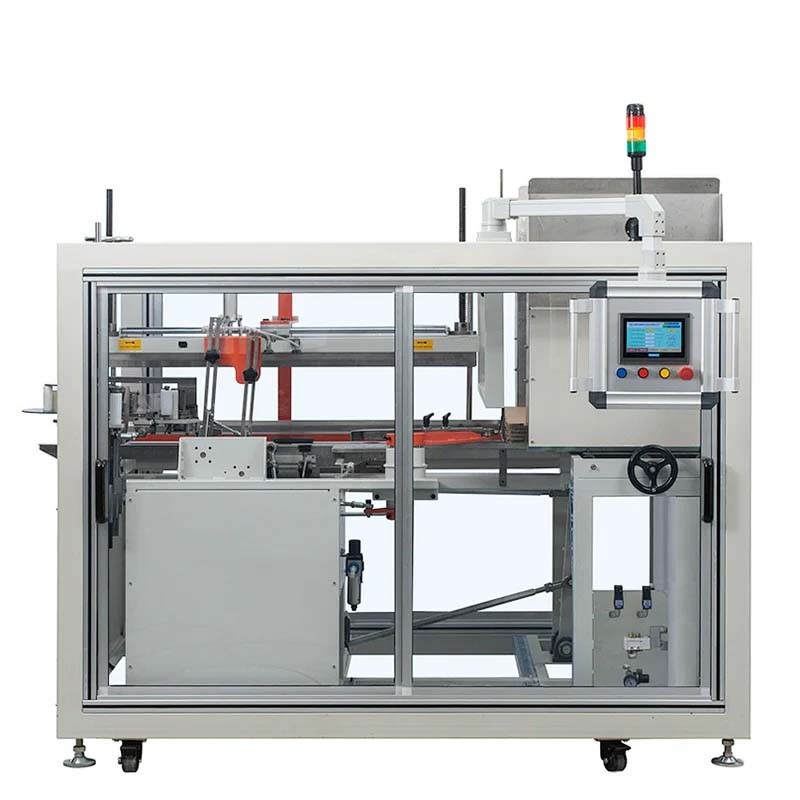

DKX50 high-speed
horizontal carton erector , the machine adopts touch screen menu operation,
suitable for automatic box erection, bottom folding and bottom sealing
functions of various cartons.
It can connect the case packing machine and the
case sealing machine to form a production line of opening, packing and sealing.
The machine speed is up to 30 cases per minute,
which can be working at a constant speed for 24 hours.
Wide range of applications: e-commerce sealing,
factory sealing, warehouse sealing, express cloud warehouse sealing.
Specification:
|
Model |
DKX50 |
|

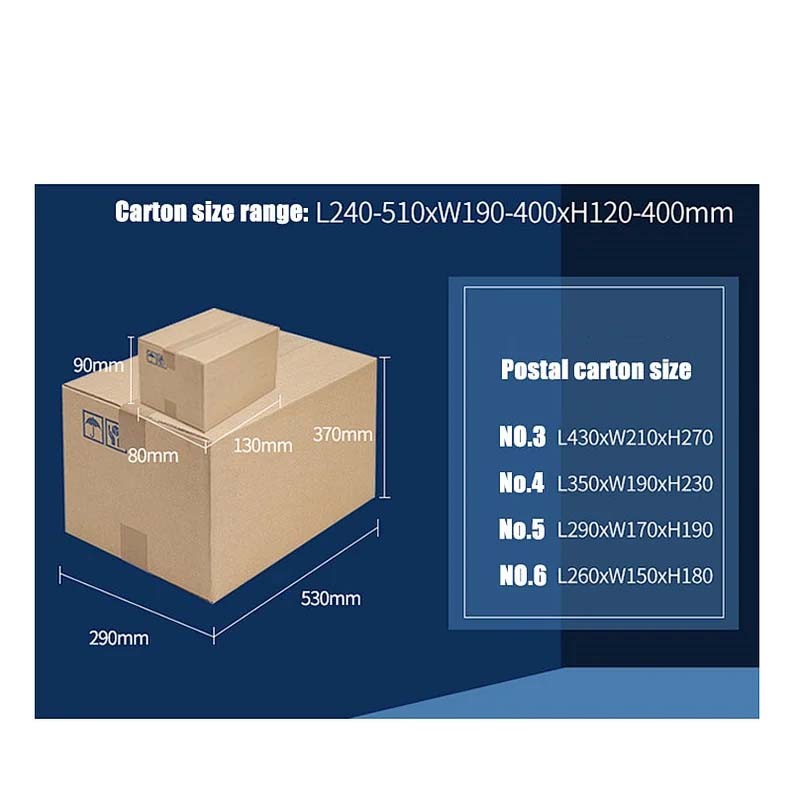

Carton Size |
L240~510mm/W190~400mm/H120~400mm |
|
Table height |
960-1000mm |
|
Speed |
10-30pcs/min |
|
Dimension |
L2120*W1410*H2000mm |
|
Power supply |
220V 50HZ |
|
Air Source |
0.5-0.7Mpa |
|
Power |
750W |
|
Tape |
W48mm-W60-75mm |
|
Machine weight |
600kg |
