Description
Summarize:

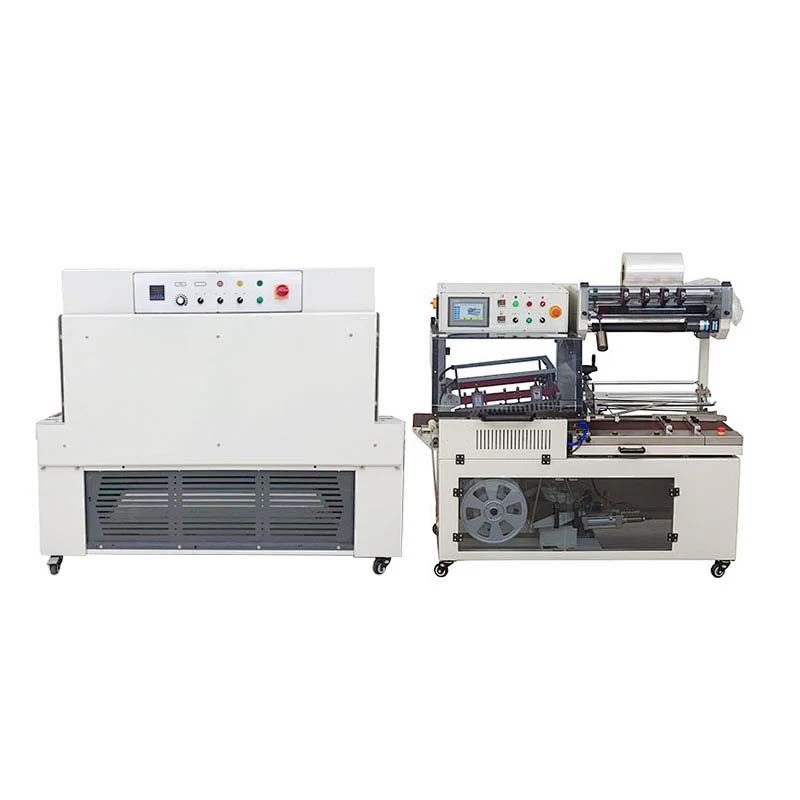

DQL 6560G L sealer, add a touch screen, and
improve the speed. That's an intelligent type design for high requirement
customers. The shrinking machine adopts a circular heating tube with a fan
motor to create a perfect wind circulation system. By the way, the conveyor can
be customized to 1.2m and 1.5m.
About Brand
1. Panasonic" sensors
2."airtac" cylinder
3.Omron" programmable logic
controller (PLC),
4."Omron" temperature controller
5."Airtech" air filter
Optional:
conveyor connecting function can work with a
very small products.(≤12cm)
Specification:
|
Model |
DQL6560G |
DSC6030A |
|
Max packing size(mm) |
W+2H+50~80≤690mm H≤140 |
W600×H300 |
|
Max sealing size(mm) |
L650×W600 |
/ |
|
Power(KW) |
2.6KW |
26.4KW |
|
Capacity |
0-40 pcs/min |
0-16 m/min |
|
Voltage |
220V 50/60HZ |
220V/380V,50~60HZ |
|
Shrink tunnel(mm) |
/ |
L1500xW600XH300 |
|
Loading Weight |
/ |
20kg |
|
Sealing temperature |
180ºC-250ºC depends on the thickness of film and the environment temperature |
|
|
The thickness of the film(mm) |
0.012-0.06 |
|
|
Air pressure(Kg/cm2) ) |
5-6 |
|
|
Packing material |
POF PVC |
|
|
Machine weight(kg) |
400 |
* |
|
Machine size(mm) |
L2050×W1100×H1650 |
L1810xW977xH1565 |
