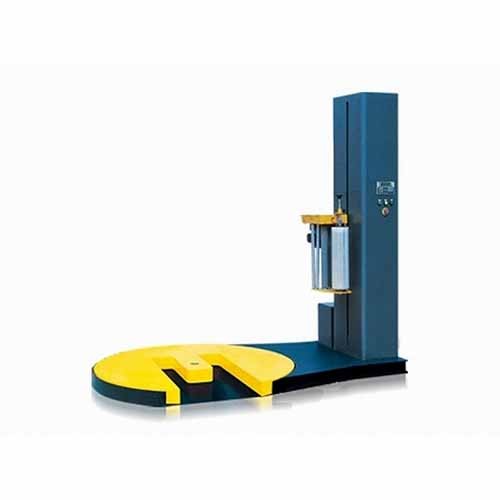

T1650FM Automatic Pre-stretch Pallet Wrapping Machine (open turntable)

Description

Product Feature:

This pallet stretch film wrapping machine with an open turntable in order to enable direct loading with manual or electric jacks, so there is no need either for floor modifications or for a ramp. Therefore, that would save much effort and improve efficiency. Top plate is optional and specially designed for holding an unstable product.

Technical Specification

How to install the pallet stretch wrapping machine?

1、After the machine arrives at the site, check whether the machine and parts and accessories listed in the packing list are complete.
2 machine whether there is damage in transit.
3, the certificate of conformity, to confirm that the machine you will use is a qualified product, and meet the requirements on your order.
4, open the box according to the designated location (be careful not to damage the machine), check the equipment and random accessories in accordance with the random packing list.
5、Read this manual in detail for installation, commissioning and use
6、The equipment should be installed in a dry indoor environment without dust, flammable and explosive chemicals and other corrosive substances to the machine, temperature range -10-40℃, no knot leakage.
7、Place the turntable part on the flat ground, connect the film system guiding column with the turntable part, install the ramp (accessory, optional) at the same level of the turntable, which should be convenient for the goods to be put on or unloaded. The ramp (accessory, optional) should be installed at the same level of the turntable, which should be easy for the goods to be put in or unloaded from the working position, paying attention to the position and the clearance between the turntables. After installation, the expansion screw (self-provided) can be fixed.
8, check the other connected parts, electrical wiring is easy or off, should be fixed in time all loose loose or fallen parts, wires.
9、Make sure to provide correct, stable and reliable fixed power supply (strictly use temporary line). The power supply is connected to the machine power lead according to the corresponding line number, and the power supply is connected to the machine power lead-in line to confirm correctness. and grounding test before the test machine; connection to pay attention to the positive and negative direction of the motor, to confirm the direction of operation When connecting, pay attention to the positive and negative direction of the motor, and confirm the direction of operation in the manual state.
10. Check whether all limit switches, limit switch arms and limit blocks are damaged and in the correct position, and whether they can be used normally. Check whether all limit switches, limit switch arms and limit blocks are damaged and in the correct position, and whether they can be used normally.
11、 The chain and reducer have been lubricated or oiled before the equipment leaves the factory, please confirm before operation.
12、 Turn on the power, turn on the air switch in the electrical cabinet, and the machine will be in standby after the power self-test. The machine is in the standby state after the power self-test, and can be debugged.

How to use the pallet stretch wrapper machine?

The machine is in the initial position, fix the film on the turntable or goods, press the automatic operation button, the turntable start to accelerate to the set speed, the film will be output automatically with the turntable operation, and at the same time the turntable technology will be set. When it reaches the set value at the bottom, the film frame will rise, and if you press "strengthen" during the rising process, the film frame will be suspended. When it reaches the set number of reinforcement turns, the film frame will continue to rise. When it reaches the set number of reinforcing turns, the film frame will continue to rise. When the film frame goes up to the point that the photoelectric switch can not irradiate the goods, it will execute the time delay set After the film frame stops rising, the up and down times are counted once, the turntable continues to run and counts, and when the set number of top laps is reached, the film frame continues to rise. When the set number of top laps is reached, the membrane frame will descend, and when it reaches the bottom, the membrane frame will stop, and the number of up and down will be counted once more. and start the bottom lap, and so on until the number of up and down reaches the set value when the packaging process is completed.

Troubleshooting for the pallet wrapping machine?

1、 Keep the chain inside and outside links lubricated, add HJ20-HJ40 mechanical oil, when the film frame moves up and down with jittering phenomenon, it can be eliminated by tightening the chain.
2、 When the turntable slows down or slips, open the motor cover of the turntable, loosen the four connecting bolts on the reducer mounting plate, then adjust the two tightening bolts evenly clockwise to achieve the required tightening force and tighten the four connecting bolts, the machine should adjust the chain tightening after 10-15 days of continuous use.
3, lifting, chassis and film frame drive is through the worm gear governor to complete the variable speed, in the use of the process, please use the following requirements:
a: the use of intrusion oil lubrication reducer, intrusion oil depth of the worm under the turbine or the side of the worm, for the worm full tooth height, above the worm outer diameter of 1/3;
b: recommended to use synthetic worm oil 200# (kinematic viscosity of 320 at 40℃);
c: 1/2 of the oil mirror if there is an oil mirror, the center distance a=63mm is recommended to add 400ml
d:The oil must be replaced after 7-14 days of operation and once every 1 year thereafter.
e:The ambient temperature should be -40-+40℃ below 0℃ with low freezing point lubricant.
f: Gear reducer adopts grease lubrication, no need to replace grease during use, or replace according to the actual situation.
4、 When placing the goods package should be as smooth and light as possible, so as not to deform the chassis or shorten the life of the machine parts.
5、 The goods should not exceed the design packaging height, otherwise, it will affect the packaging effect.
6、 The goods should be placed within the turntable, if the goods are too large beyond the range of 100mm or according to the actual space of the machine operation, otherwise it will probably damage the machine.
7、 The electrical cabinet should be closed, and the electrical parts and electrical connections should be cleaned and checked regularly to ensure that the equipment is used properly. Normal use.
