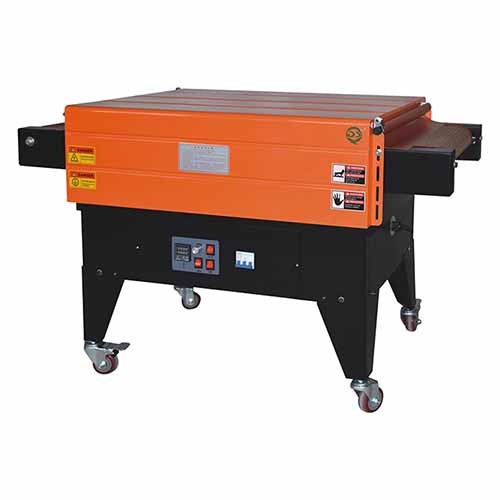

Description
Jet-propelled thermal contraction packing machine is the most new-type automatic successive shrink able packaging device in the current domestic market with radiating pipe heating, power saving and high efficiency(power saving over15%); shrinkage temperature and motor drive speed are stable, adjustable with an extensive adjusting range and original jet-propelled device. So this product is characterized in advanced design, extremely stable and reliable performance, good packaging contraction effect, novel and beautiful structure and convenient operation and maintenance and some other features. Moreover, the service life of the products is obviously higher than similar products. The lengthened jet-propelled thermal contraction packing machine is used for the shrinkable package of shrinking film like PVC, POF and PR Especially applied for shrinkable package of POF shrinking film.
Technical parameters
|
Model |
BS4525A |
BS4535LA |
BS6535LA |
BS8535LA |
|
Power supply |
220/380V 50/60HZ |
380V 50/60HZ |
380V 50/60HZ |
380V 50/60HZ |
|
Power |
6.5KW |
6.5KW |
6.5KW |
6.5KW |
|
Size of shrink oven |
900×450×250mm (Adjustable) |
1200×450×350mm (Adjustable) |
1200×650×350mm (Adjustable) |
1200×850×350mm (Adjustable) |
|
Conveying speed |
0-10/min (Adjustable) |
0-10/min (Adjustable) |
0-10/min (Adjustable) |
0-10/min (Adjustable) |
|
Conveying weight |
10kg |
30kg |
30kg |
10kg |
|
Material |
PVC POF PP |
PVC POF PP |
PVC POF PP |
PVC POF PP |
|
Dimensions |
1300×650×830mm |
1600×650×830mm |
1600×850×830mm |
1600×1050×830mm |
|
Machine weight |
103kg |
127kg |
162kg |
198kg |
