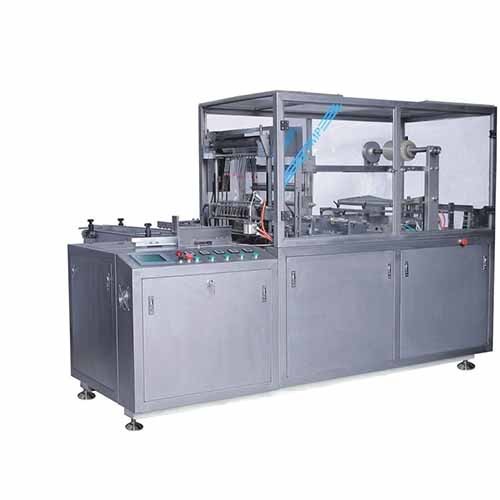

TMP-300D/400D Automatic Cellophane Over-wrapping Machine
Introduction:
The machine is suitable for the automatic packing of box-shape single objects or box-shape single objects or box-shape many objections such as pharmacy, food, health products, tea, cosmetic present stationary, audiovisual products etc. It can replace the box in the paper and also can reduce the packing cost about 95%. Using the machine to pack can defend take-proof moisture and proof dust , and etc. It improve the productions level , increase the productions additional value . The machine can be linked to with boxing machine to compose packing production line.
Product Features:
1.Adopting the man-machine interface , PLC control, Failures diagnosing software .
2.Adopting the servo motor to feed film. The speed and the length can be adjusted .Using the film smooth and length accurate.
3.Adopting full cylinder drive .Steady running .accurately Synchronizing .conveniently adjusting hard sealing.
4.Compact structure .Easy to operation and Manipulating .complete safety device
Technical Specification:
|
Model |
TMP-300D |
TMP-400D |
|
Packaging material |
OPP,BOPP､PVC |
|
|
Production capacity |
5-30packs/min |
|
|
Bag size |
L(50-300)×W(40-220)×H(10-90)mm |
L(50-400)×W(40-250)×H(10-90)mm |
|
Power supply |
AC380V 50HZ 6.5KW |
|
|
Working pressure |
0.6Mpa |
|
|
Air consumption |
400L/min |
|
|
Weight |
750kg |
|
|
Overall dimension |
2455×910×1750mm |
2455×1000×1750mm |
|
Input table dimension |
1650×320×930mm |
1650×320×930mm |
