Description

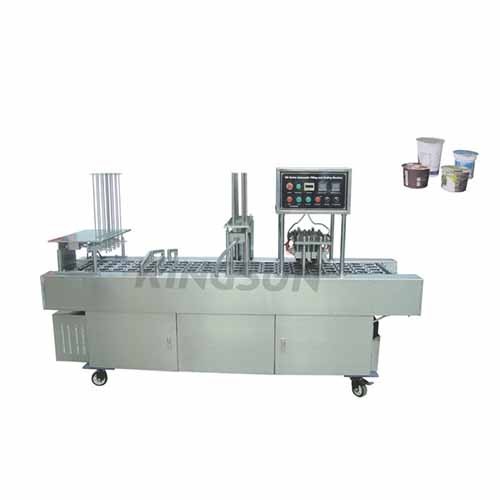

BG-V series Automatic Cup Fill-Seal-Cut Machine
Product Feature:
BG32V (2 cups)/BG60V (4 cups) cups automatic fill-seal-cut machine is widely used in
filling and sealing various kinds of plastic cups for liquid. It can automatically complete the
process of cup-dropping, filling, sealing, and cup-falling in one operation. V model is
especially designed for pick-place aluminum foil cover that is already cut in one piece, not
film in roll. In addition, it can be customized according to your special requirement.
Technical Specification:
|
Model |
BG32V |
BG60V |
|
Number of cups |
2 cups |
4 cups |
|
Power source |
220V/380V/50HZ 2.5kw |
220V/380V/50HZ 3.5kw |
|
Capacity |
30-32 cups/min |
60-64 cups/min |
|
Temperature |
0-300℃ |
|
|
Seal material |
PE, PP, PET/PE |
|
|
Dimension |
2150X700X1550 mm |
2360X820X1550 mm |
|
Weight |
400 KG |
500 KG |
