Description

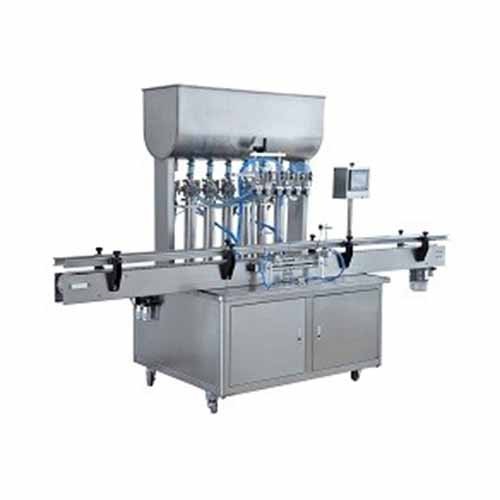

Introduction：
Widely used for filling various kinds of highly viscous fluid in the industries of daily chemicals, foodstuffs, pharmaceutics and oil. For example：paste,jam,butter,salad dressing, tomato sauce,chili sauce,very sticky fluid or other materials.
Operating principle: By the reciprocating motion of the pistons in the material cylinders of the Filling Machine, negative pressure produces in the front chamber of the cylinder so that material could be pumped. The stroke of the cylinder is controlled by a signal valve so as to adjust filing amount and to achieve accurate filling results.
Property: The Filling Machine with extra functions is designed and manufactured by our factory with reference to the same kind of foreign machines. This machine is simpler and easier in operation, error correction, adjustment, cleaning and maintenance.
With automatic transmission, automatic filling, no bottle no filling, bottle positioning, prevent drip, lifting filling, and other functions. Can be equipped with protective cover.
The part contacting materials is made of 304 stainless steel.
Material contact parts can be customized SS316.
The hopper can be customized double fully-sealed warm type.
The hopper can be customized mixer(with motor) type.
Hopper can be installed liquid level automatic control system.
Technical Parameter:
|
Model |
GT2T-2G |
GT4T-4G |
GT6T-6G |
GT8T-8G |
|
Filling heads |
Two Head |
Four Head |
Six Head |
Eight Head |
|
Powe supply |
220/110 V 50/60Hz |
|||
|
Power |
500W |
800W |
1000W |
1500W |
|
Sir pressure |
0.4-0.6MP a (Inside the machine i s equipped with gas storag e barrels) |
|||
|
Filling speed |
≈4-16 bottles/min |
≈8-32 bottles/min |
≈12-48 bottles/min |
≈16-64 bottles/min |
|
Filling accuracy |
≤ ±1% |
|||
|
Filling volumes range |
20100ml 30-300ml 50-50 0ml 100-1000ml 500-2000 ml 700-3000ml 1000-5000ml |
|||
|
Conveyor line length |
2M |
2M |
3M |
4M |
|
Model |
GT10T-10G |
GT12T-12G |
GT16T-16G |
GT18T-18G |
|
Filling heads |
10 Head |
12 Head |
16 Head |
18 Head |
|
Powe supply |
220/380 V 50/60Hz |
|||
|
Power |
2000W |
2000W |
2500W |
3000W |
|
Sir pressure |
0.4-0.6M Pa (Inside the machine is equipped with gas storage barrels) |
|||
|
Filling speed |
≈20-80 bottles/min |
≈24-96 bottles/min |
≈32-128 bottles/min |
≈36-144 bottles/min |
|
Filling accuracy |
≤±1% |
|||
|
Filling volumes range |
20 -100ml 30-300ml 50-5 00ml 100-1000ml 500 -2000ml 700-3000 ml 1000-5000ml |
|||
|
Conveyor line length |
4M |
4M |
5M |
6M |
Can be customized filling head number and the length of the conveyor line.
