Description
Product Feature

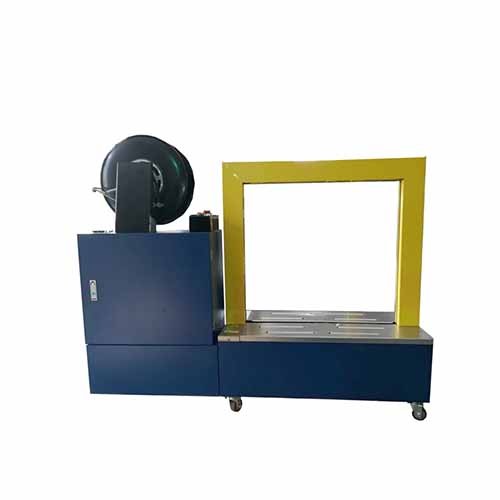

This machine is specially designed for big and
heavy packages, which with rugged housing and strong loading weight. Its
strapping table can be customized according to the height of the customers’
production line.
Strapping type: one to several lanes at parallel way, and can be manual,
automatic or pedal switch.
Technical Specification
|
Model |
DBA-200L |
|
Voltage |
220V/50HZ, 1P or 380V/50HZ, 3P |
|
Applicable Strap |
Polypropylene Width;9,10,12,16,19mm |
|
Arch Size |
Width:550~2850mm; Height:250~1800mm (standard size 850W x 600H) |
|
Speed |
2.3sec/ cycle (arch W850 x H600) |
|
Tension |
5~80kg |
|
Dimension (L x W x H) |
1880 X 600 X 1200 (arch width 850 x height 600) |
|
Weight |
280kgs |
