Description
Application:

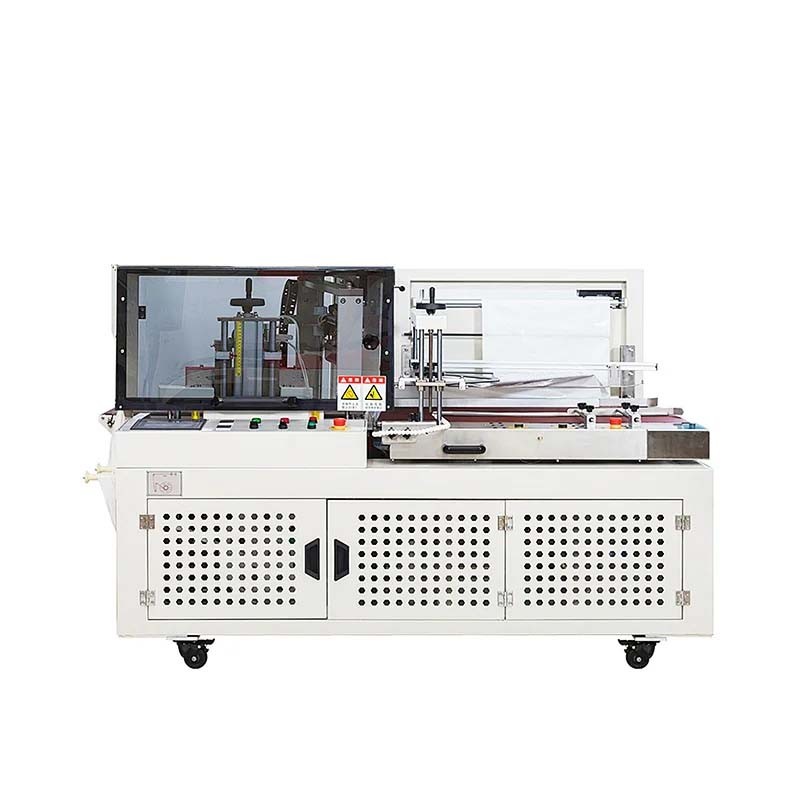

This side sealer machine DQL6025S is widely used
in photo frames, aluminum, profile, water, pipe, wood floor, and other
industries shrink packaging.
Summary:
The automatic side sealer is an integrated
automatic production line. Products are fed by the conveyor into the plastic
sheeting and cut automatically.It has a PLC program control as well as a
specially designed protector on the cutting head. It also uses a seal and
stick-free knife during operation which guarantees consistent smoke-free
running.
Specification:
|
Model |
DQL6025S(Side sealer) |
|
Power Source |
AC220V 50Hz/60 Hz |
|
Sealing Temperature |
Relation with the thickness of the plastic film. Normally,it is 140ºC-180ºC for horizontal sealing and 250ºC-280ºC for side sealing |
|
Max.packing size/(mm) |
L:∝ |
|
Capacity |
0-25pcs/min |
|
The thickness of film/(mm) |
0.015-0.05(mm) |
|
Air pressure/(Kg/cm2) |
5-6(Kg/cm2) |
|
Packing Material |
POF |
|
Machine size/ (mm) |
L2600×W1450×H1680 |
|
Weight |
500kg |
|
Model |
DSC6030A |
|
Voltage |
380V/50~60HZ |
|
Power |
26.32KW |
|
Conveyor speed |
0~10m/min |
|
Tunnel size |
1500×600×300mm |
|
Conveyor loading |
20Kg |
|
Machine size |
L1810×W976×H1563 |
