Description

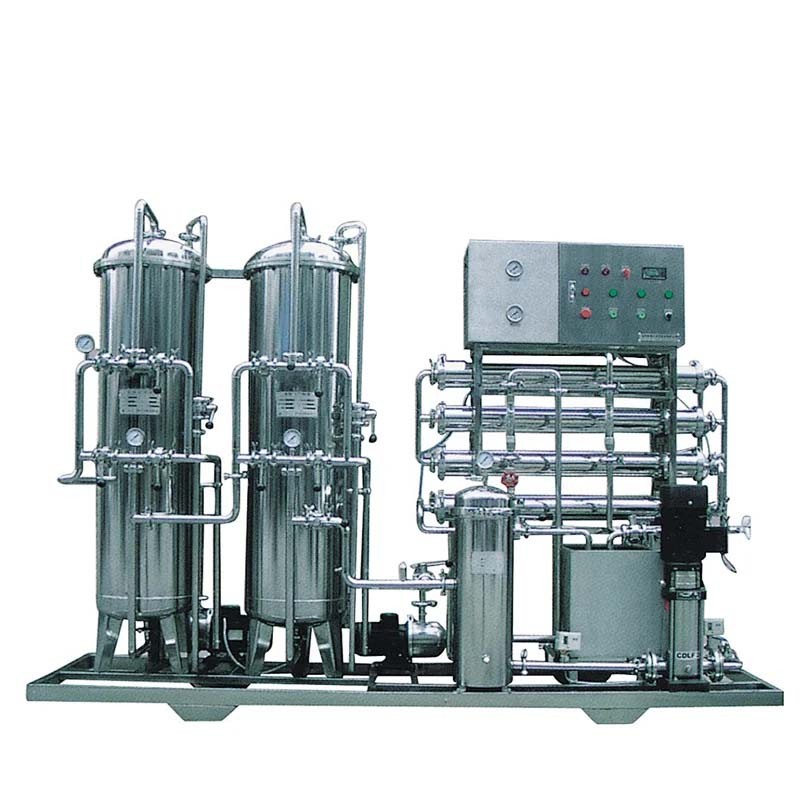

All-in-one reverse osmosis pure water machine adopt equipment of mechanically filter, active carbon filter and precision filter as pretreatment according to national standard of pure water. Main part of machine is single reverse osmosis device or two classes reverse osmosis device; Finally use sterilization technology of ozone. It removes grain, impurity, colloid and residual chloride through reasonable and high efficient pretreatment system; Then remove microbe such as bacteria, virus and most heavy metal plasma that is harmful to human body through use Hi-tech separation technology of reverse osmosis film. The ozone sterilizer and corresponding water tank is equipped with machine.
Reverse osmosis use enough pressure to separate solvent (usually it is water) of liquor through film of reverse osmosis (or semi-penetrative membrane), so it is called to reverse osmosis. Reverse osmosis, as high efficient technology of desalting, can remove impurity such as inorganic ion, bacteria, virus, and colloid etc in original water so that obtain high quality pure water. Reverse osmosis method that is bigger than pressure of penetration can be used to separate, extract, purify and concentrate according to different penetration pressure for different material.
This system is widely applied to drinkable water project, industrial pure water project, applied in the food, beverage industry, pharmaceutical, chemical, electronic, Petroleum and chemical industry.
Specification:
| Model | P-RO-0.5 | P-RO-1 | P-RO-2 | P-RO-3 | P-RO-5 | P-RO-10 |
| Capacity | 0.5T/H | 1T/H | 2T/H | 3T/H | 5T/H | 10T/H |
| Pre-filter capacity | 1 T/H | 2 T/H | 3 T/H | 5 T/H | 7 T/H | 12 T/H |
| Ozone generator | 3.5 g /h | 3.5 g /h | 6 g /h | 10 g /h | 15 g /h | 15 g /h |
| Power | 2KW | 3 KW | 4 KW | 5 KW | 6 KW | 16 KW |
| Diameter of mechanical filter | Φ 300mm | Φ 400 mm | Φ 500 mm | Φ 600 mm | Φ 800 mm | Φ 1300 mm |
| Diameter of active carbon filter | Φ 300 mm | Φ 400 mm |
Φ 500 mm |
Φ 600 mm | Φ 600 mm | Φ 1100 mm |
| Diameter of RO membrane | 4" | 4" | 8" | 8" | 8" | 8" |
| Quantity of RO membrane | 2 pcs | 4 pcs | 2 pcs | 3 pcs | 4 pcs | 9 pcs |
| Size of water tank (mm) | Φ 700 x 1800 | Φ 1000 x 1900 | Φ 1300 x 2200 | Φ 1600 x 2250 | Φ 1800 x 2830 | Φ 2250 x 3500 |
| Machine Size (mm) | 1270 x 750 x 1630 | 2730 x 730 x 1980 | 2830 x 830 x 2070 | 3100 x 920 x 2200 | 2620 x 920 x 1600 | 3620 x 1000 x 180aa |
