Description
Product Feature
The object should be feed by manual, it can pack unitary counted case (box or can) and also many goods, and it’s used to sleeve seal for many different industries such as printing, floor, chinaware, beverage and beer etc. and it’s suitable for film of PVC, POF, PP and PE.
Technical Specification
|
Model |
TF6540SA |
|
Voltage(V/Hz) |
AC 220/50 110/50 |
|
Power(kw) |
1.5 |
|
Max. Packing Dimension(mm) |
550×400×380 |
|
Max. Sealing Length(mm) |
650 |
|
Working Air pressure(kgf/cm2) |
5~7 |
|
Dimension(L×W×H)(mm) |
925×1040×1920 |
|
Net Weight(kg) |
300 |

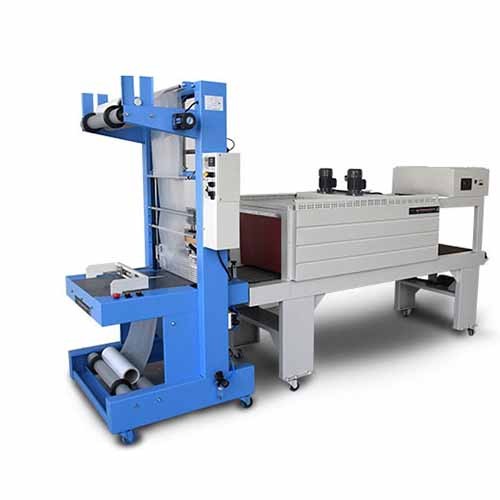

Shrink Packing Machine For PE Film BS5540M
Main Technical Parameters
|
Type |
Voltage |
Power |
Load |
Max. packing size (mm) |
Overall dimension (mm) |
Delivery speed |
Weight |
|
BS5540M |
380V |
18KW |
40 |
550x400 |
2500X750X1400 |
0-10m/min |
240kg |
Shrinkable Film Temperature, Time Reference Table:
|
Conditions
Film |
Commonly called |
Thickness (mm) |
Heating time (S) |
Thermal shrinkable room temperature (℃) |
|
Polyvinyl chloride |
PVC |
0.02-0.06 |
5-10 |
110~130 |
|
Polypropylene |
PP |
0.02-0.04 |
6-12 |
130~170 |
|
Polyethylene |
PE |
0.03-0.10 |
20-30 |
170~200 |
|
Polyethylene |
PE |
0.12-0.20 |
30-60 |
180~220 |
