Description

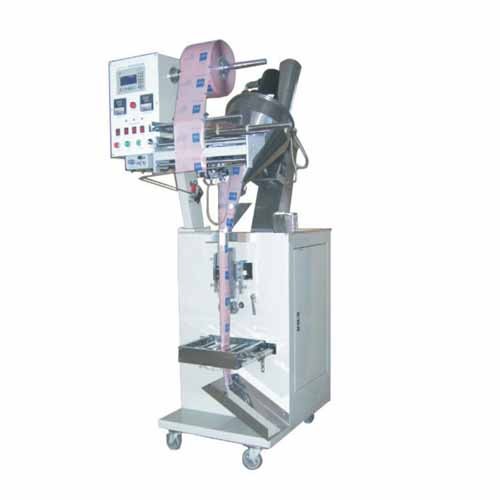

DXDF-AX Series Automatic Powder Packing Machine
Product Feature:
The machine is suitable for packaging of soft bags of powdered materials in the field of food, daily chemical, medicine, agricultural chemical and animal’s medicine etc. It adopts high accurate auger filling system. It’s suitable for single Paper/PE, Cellophane/PE, Plated aluminum/PE, BOPP/PE, Nylon/PE, and other heat-able sealed laminated film as packaging material.
Technical Specification:
|
Model |
DXDF-20AX |
DXDF-50AX |
DXDF-100AX |
|
Voltage (V/HZ) |
AC 220V/50HZ, or 110V/60HZ |
||
|
Power (W) |
1800 |
2100 |
|
|
Packing volume (ml) |
2-20 |
5-50 |
10-100 |
|
Packing speed (bags/min) |
35-55 |
25-50 |
20-40 |
|
Bag width (mm) |
25-70 |
70-150 |
50-150 |
|
Bag length (mm) |
35~85 |
80~150 |
50-220 |
|
Dimension (L x W x H) mm |
790×600×1780 |
800×700 ×1900 |
1020×820 ×2300 |
|
Net Weight (Kgs) |
370 |
400 |
450 |
|
Model |
DXDF-500AX |
DXDF-1000AX |
|
Voltage (V/HZ) |
AC 220V/50HZ, or 110V/60HZ |
|
|
Power (W) |
2200 |
2400 |
|
Packing volume (ml) |
100-500 |
100-1000 |
|
Packing speed (bags/min) |
15-30 |
5-30 |
|
Bag width (mm) |
50-200 |
50-220 |
|
Bag length (mm) |
50-250 |
50~300 |
|
Dimension (L x W x H) mm |
1002×870×2700 |
|
|
Net Weight (Kgs) |
500 |
550 |
