Description

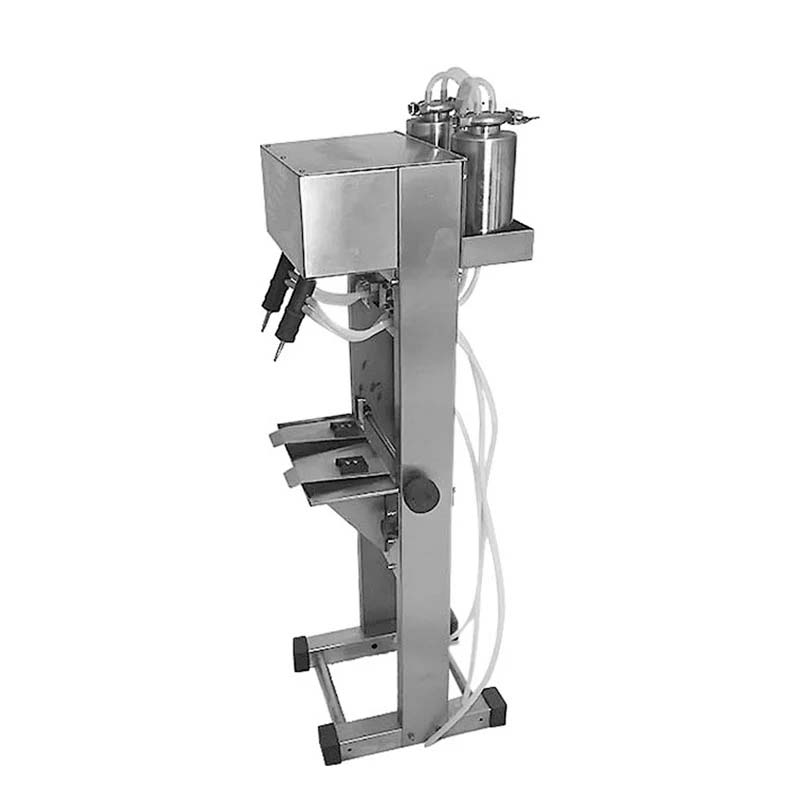

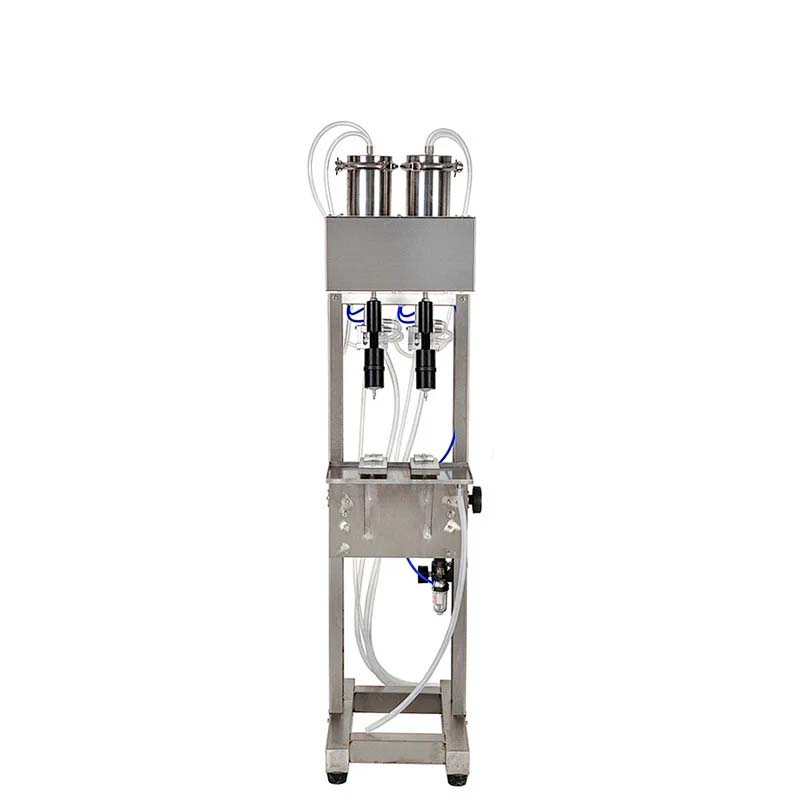

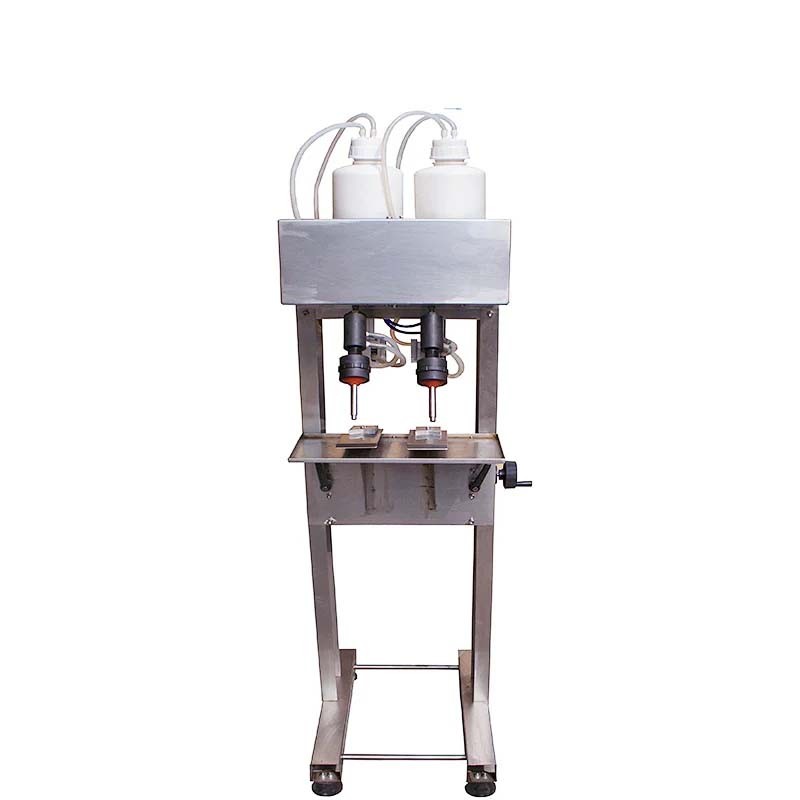

Perfume filling machine
YT double-head liquid level control liquid
filling machine is a negative pressure semi-automatic filling machine, which is
mainly used for filling liquid materials such as toilet water, perfume,
lubricating oil, detergent and so on. There are two models of double-head and
four-head. It has the metering performance of constant liquid level, the height
of liquid can be adjusted, the structure of this machine is compact and
reasonable, the operation is simple, and the maintenance is convenient. The
parts in contact with the material are made of 304 stainless steel. It is
suitable for filling glass bottles and plastic bottles that are not easily
deformed after being vacuumed.
Technical data:
|
Model |
YT-2 |
|
Bottle height |
≤350mm |
|
The maximum diameter of the bottle |
≤φ35mm |
|
The minimum diameter |
≥φ4.5mm |
|
Adjustable high level |
15-50mm |
|
Dimensions |
660×470×1330mm |
|
Room temperature |
0-30ºC |
|
Pumping rate |
5.5 L/S |
