Description
Automatic Sleeve
Wrapper with CE Approval

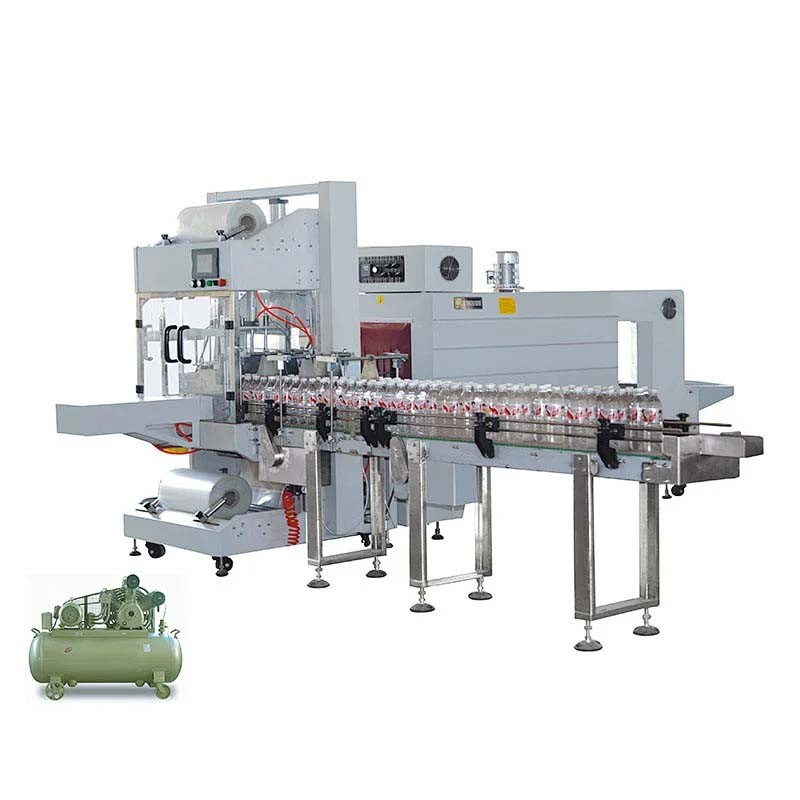

QSJ-5040A automatic sleeve wrapper is suitable
for wrapping products such as pop-cans, bottles, etc, with bottom-tray or
without bottom-tray, working with BSE-5040A jet PE-film shrink tunnel or other
PE shrink tunnel.
Characteristic:

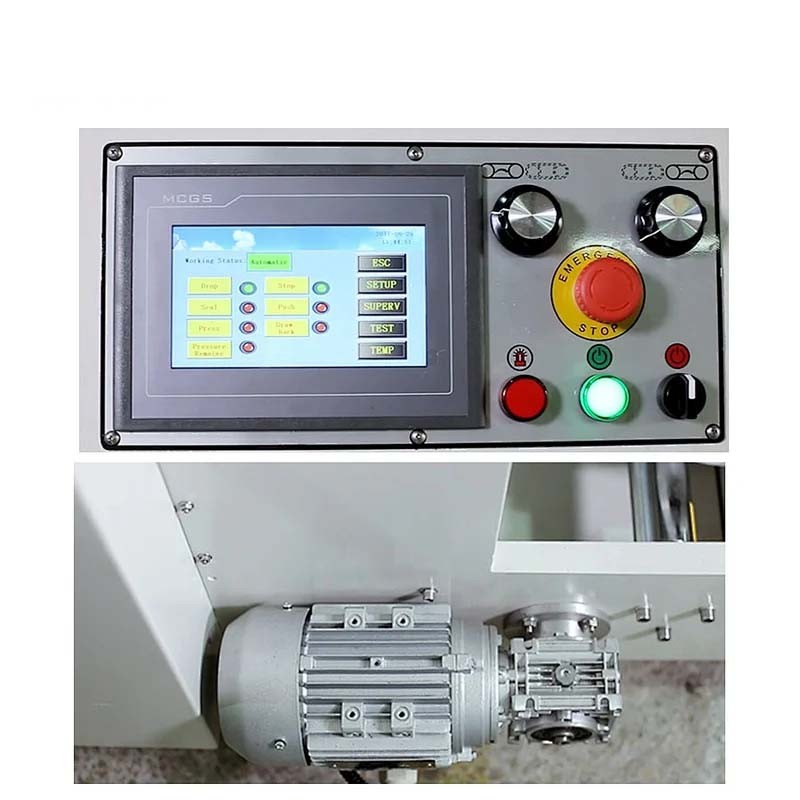

1. The Machine adopts the advanced touch screen
which makes operation easier, Schneider programmable logic controller (PLC),
Schneider AC contactor, Air TAC cylinder, and all the rest parts adopt
international famous brand.
2. Upper and down electromagnetic switch
prevents sealing mistakes, and protect operator.
3. Automatic alarm security system protects
machine and operator.
4. Large power conveyer motor, with stepless
speed regulating, ensures smooth feeding.
5. Two large power fans make the temperature of
shrink tunnel every even and stable, this ensures the excellent effect of
shrinking in one time.
6. Super cooling system cools the packing and
makes the figuration perfectly.
|
Model |
QSJ -5040A |
|
Power source |
3phase 220V/380V 50-60HZ |
|
Power |
3KW |
|
Capacity |
600-800 pcs/hour |
|
Working air pressure |
0.4 -0.6 MPa |
|
Width/thickness of the film |
Max. 590mm /0.03 - 0.25mm |
|
Max. packing dimension(L*W*H) |
420*300*350mm |
|
Min. packing dimension(L*W*H) |
250*50* 100mm |
|
Conveyor size (L*W*H) |
2600*410*400mm |
|
Machine size(L*W*H) |
1060*1600*1930mm |
|
Machine weight |
370kg |
|
Model |
BSE -5040A |
|
Power source |
3phase 220V/380V 50-60HZ |
|
Heater power |
20KW |
|
Conveyer speed |
0 -10m /minute |
|
Tunnel size(L*W*H) |
1500*500* 400mm |
|
Conveyer loading |
50KGS Max. |
|
Machine size(L*W*H) |
2500*820* 1680mm |
|
Machine weight |
470KGS |
|
Shrink film |
PE, POF, PVC, PP |
