Description
Product Description:

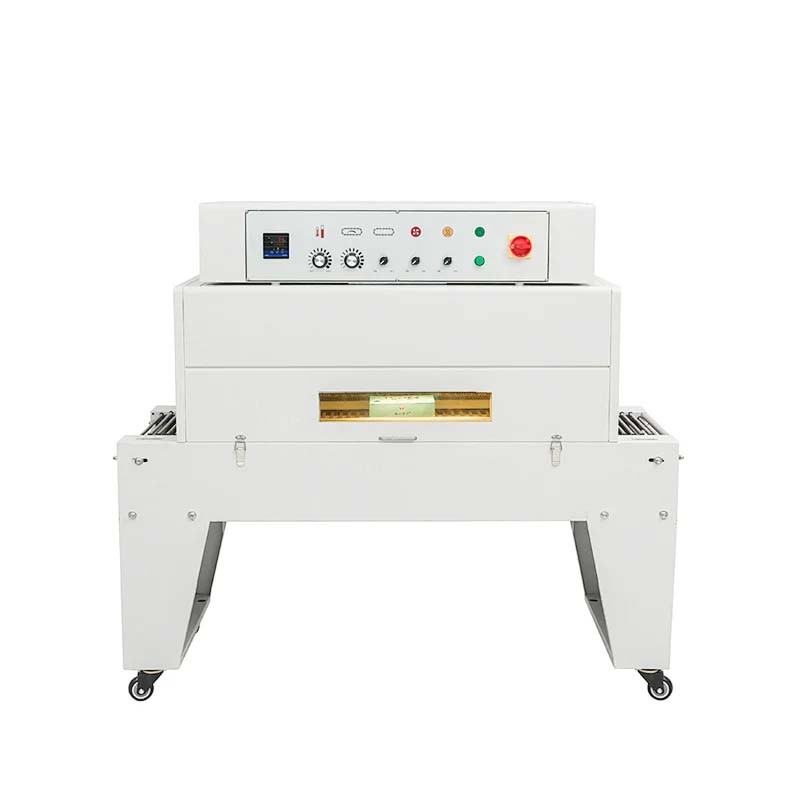

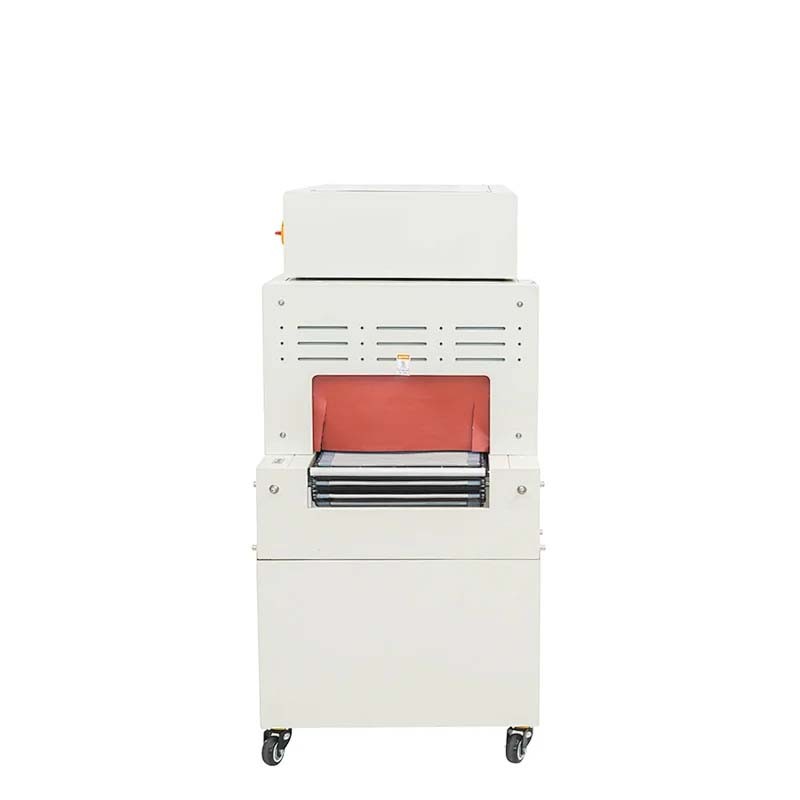

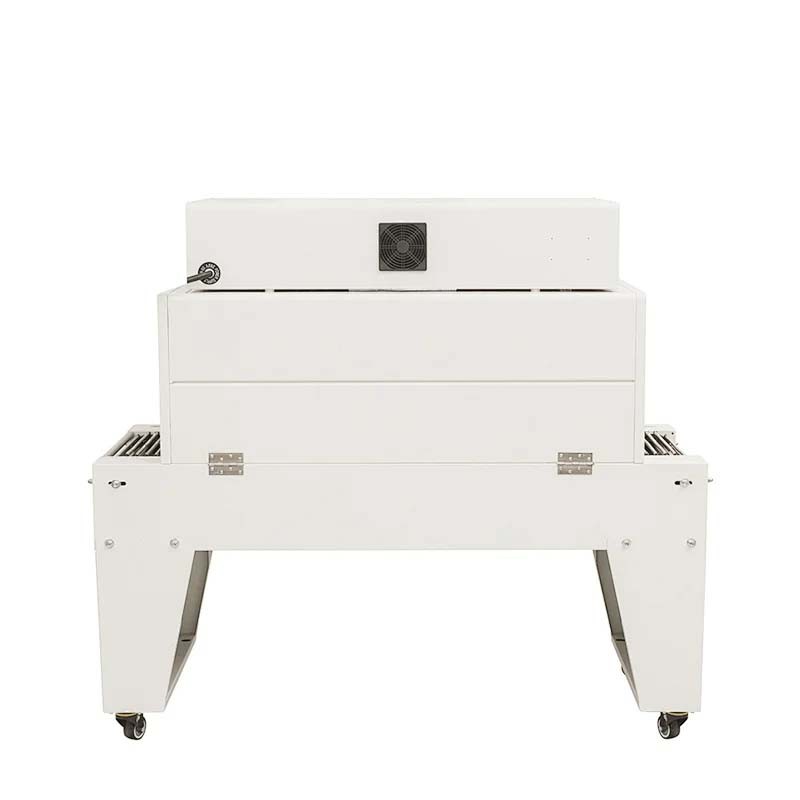

DSD4520 thermal shrink
packaging machine is suitable to shrink thin shrink films such as POF,
PVC, PP, POP, etc with far-infrared radiation.
The thickness of shrink film should be in the
range of 0.01-0.04 mm.
Quartz heating pipes are located on the top,
bottom and sides of the shrinking tunnel.
The temperature of the shrink room and the speed
of the conveyer are adjustable.
And the size of shrink tunnel can be customized.
Conveyor has option of chain roller and
iron net conveyor for choice.
Features:
1. The lid can be open and bottom tray can be
pulled out for the convenience of replacing heating pipes Compact construction,
high efficiency;
2. Voltage of down heating pipes is adjustable
through solid-booster, in order to control down temperature. The temperature of
whole shrink tunnel is controlled through AC contactor.
3. Strong air-flow ensures excellent heat
distribution for an even shrinking;
4. Intelligent temperature controlling system
makes the operation easily;
5. The speed of the conveyer is adjustable.
Specification：
|
Model |
DSD4520 |
|
Voltage |
380V 50HZ |
|
Power |
12.8KW |
|
Speed |
0-25m/min |
|
Tunnel Size |
1600*719*1444mm |
|
Load weight (kg) |
10kg |
|
Machine size(mm)L*W*H |
1200*450*200mm |
