Description

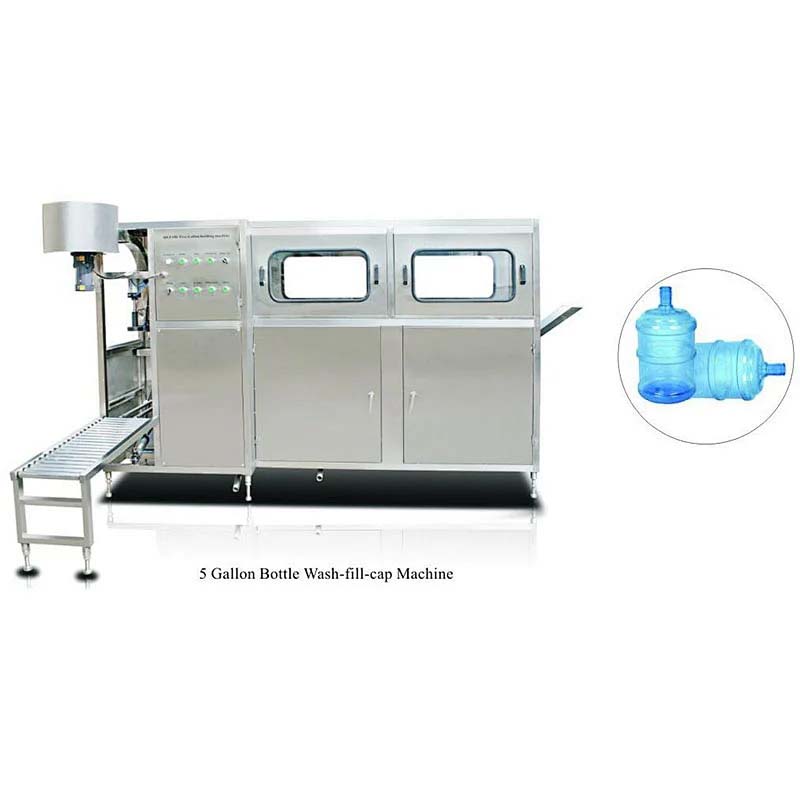

This automatic production line series is the same with producing of three-five gallon barrelage drinking water. It has same structure and be easy in use.
The whole machine adopted PLC procedure to control the working-washing barrel, douching, capping and etc.The barrel would be scouring from inside to outside repetitious and the disinfector could be used circularly. This machine is made of stainless steel and accords with healthy standard of foods.
Specification:
| Model | QGF-100 | QGF-150 | QGF-240 |
| F illing volume | 3/5gallon | ||
| B arrel sizes | diameter 276*496mm | ||
| P roduction capacity | 100B/H | 120BPH | 200BPH |
| Power | 2KW 220V 50/60Hz | 2.5KW 220V 50/60Hz | 3KW 220V 50/60HZ |
| A ir source supply | 400L/min 0.6Mpa | ||
