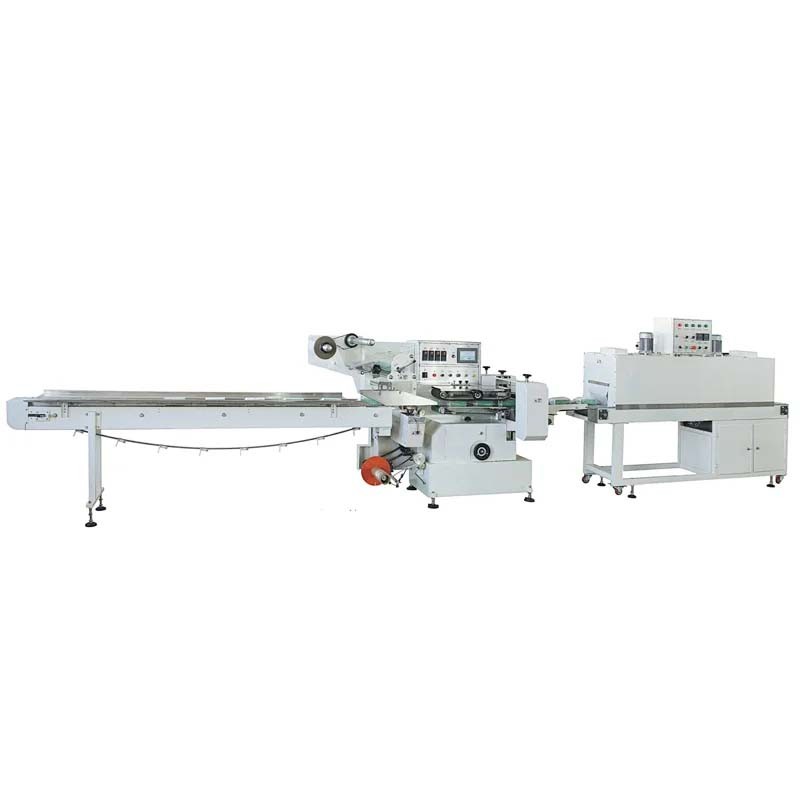

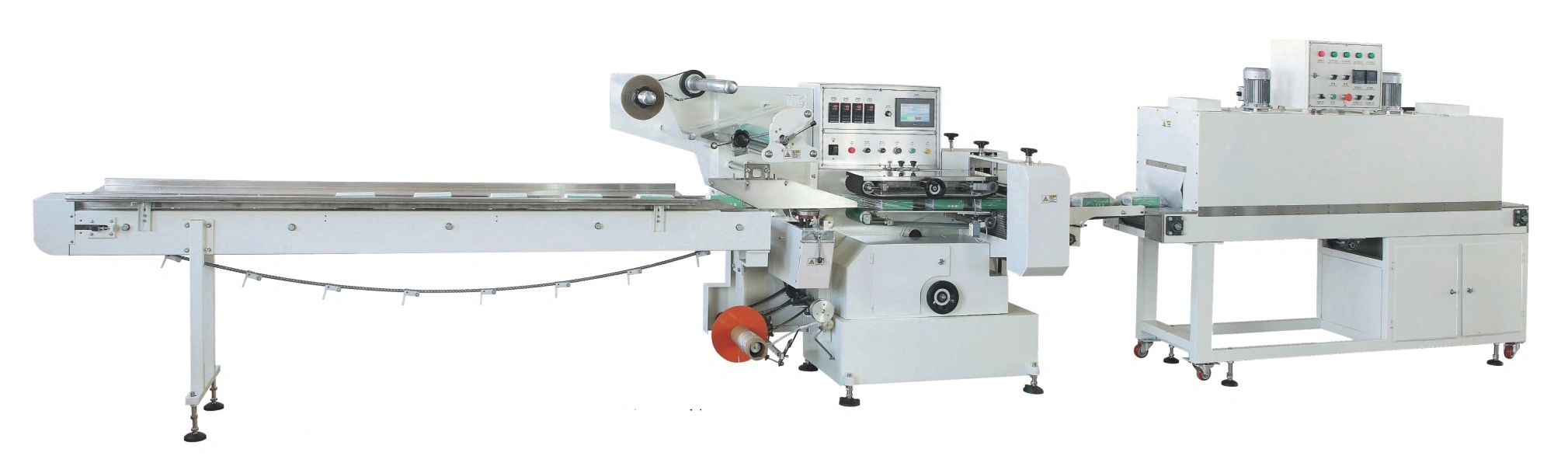

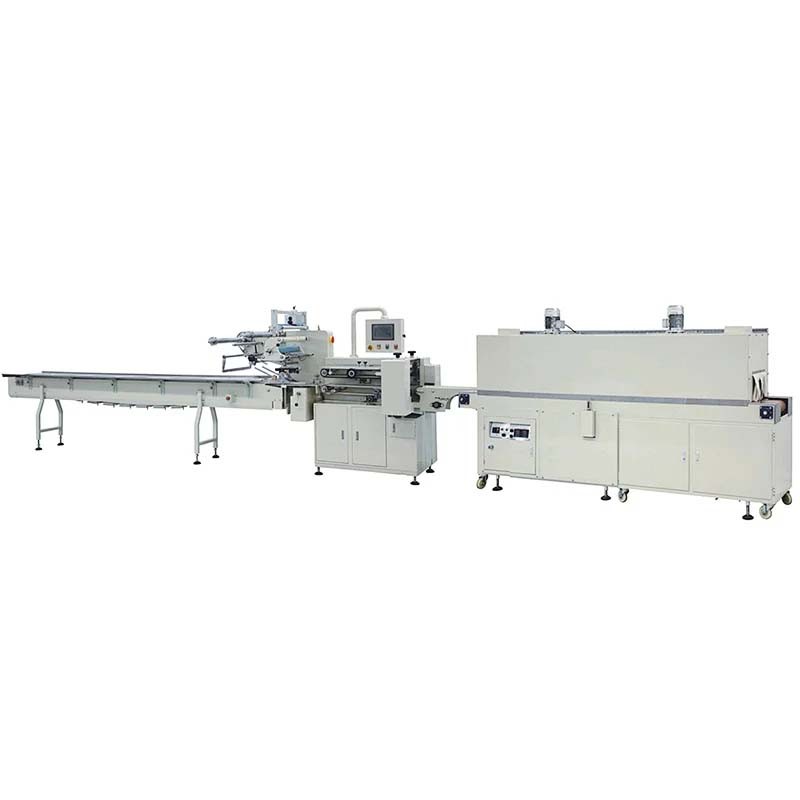

Description
Max material size (L*W*H : 500mm*280mm*100mm)
Two operating workers,
Packing speed :50-120 bags / min
Production rate: (skilled workers to operate in accordance with the degree) (packaging process annex Video)
Acceptance criteria:
1.Packaging film maximum width 600mm,
2.PID automatic temperature control system quickly and precisely
3.Built-in LED display packaging errors. Bag length adjustment range of 110-500mm, width .80-280mm. Height 10-110mm
4.Adjustable system with controller.
5.Single opening and closing wheel formula packer.
6.The closure preheating device.
7.Power 4.7Kw Voltage .220/380V ..
8.Thermal transfer coder
9.Production counts. Fault display. Alarms. Detection ..allowable packaging range. Size can be adjusted ..
10.Packing speed 50-120 packets. / Min.
11.Cutting way: hand single discharge.
12.Main motor control: Servo Motor

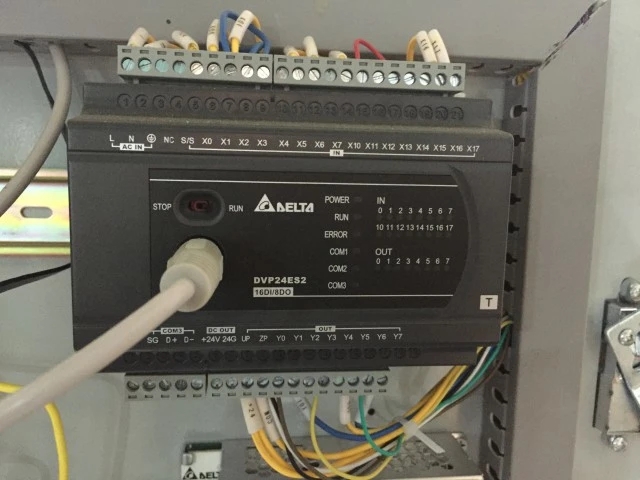

13.System: PLC software control program host computer
14.Equipment failure rate 360 hours of continuous operation. No instability phenomenon
15.No scratches finished packaging film
16.Continuous cut or saw even pack can be switch
