Description

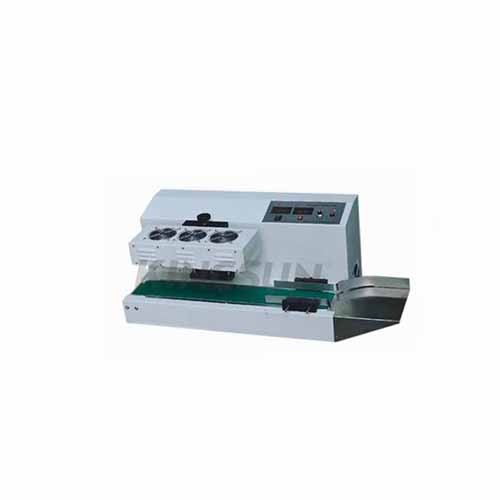

LGYF-1500A Transistor air-cooling induction sealing machine
Product Feature:
This series machine use transistor circuit control, and it has the characteristics of low cost, simple operation and easy to use. Mainly used for bottle with threaded plastics, glass bottle of bottle etc. those non-metal induction sealing operation. It’s suitable for large and medium sealing job. Batch continuity, but isn’t suitable for acid. High humidity and dust more harsh environments (such as pesticides. drinks etc.) for a long time. These series machines are suitable for single homework, do not use in line connected.
Technical Specification:
|
Model |
LGYF-1500AI |
LGYF-1500AII |
|
Voltage |
AC 220V±10% 50HZ |
|
|
Power |
1500 W |
|
|
Current work |
≤8 ( A ) |
|
|
Work Type |
continuous conveying |
|
|
Cooling Way |
forced cooling fan |
|
|
Type |
desktop |
|
|
Machine body material |
Paint |
Stainless steel |
|
Sealing diameter |
Φ20～Φ50 ( mm) |
|
|
Bottle height |
40～200 ( mm ) |
|
|
Sealing speed |
0～10 ( m/min) |
|
|
Dimension (L x W x H) |
115×48×40 ( cm ) |
|
|
Net Weight |
38 ( kg ) |
|
