Description
Product Feature:

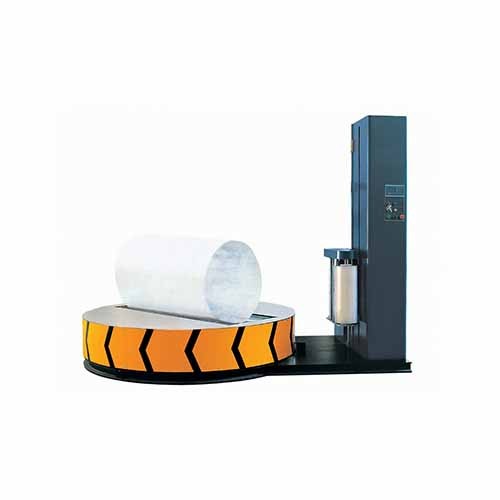

This machine with chain-driven which designed to stretch wrap roll product by turning the roll on steel blocking rollers while spinning the product on a turntable. This creates a "cocoon" wrap pattern and provides complete protection and unitization of the roll.
Technical Specification
|
Model |
T2000R |
|
Voltage |
AC 380V/50HZ |
|
Wrapping Size |
Ф（500-1500）mm x breadth 500-1600mm |
|
Turntable diameter |
Ф2000mm |
|
Turntable weight capacity (max) |
2000kg |
|
Turntable height |
460mm |
|
Wrap Efficiency |
20-40 Pallets/Hour |
|
Turntable speed |
0-12rpm Adjustable turntable speed |
|
Film carriage |
Power pre-Stretch system up to 350％ with adjustable speed |
|
Control system |
PLC control，wrap layers adjustable |
|
Pneumatic ejection |
Optional |
|
Top plate system |
Motor-driven (Optional) |
|
Pneumatic system |
0.6-0.8MPa , 1000ml/min |
|
Dimension (L x W x H) |
3200×2000×2200mm |
|
Net Weight |
1080kgs |
