Description
Product Description：

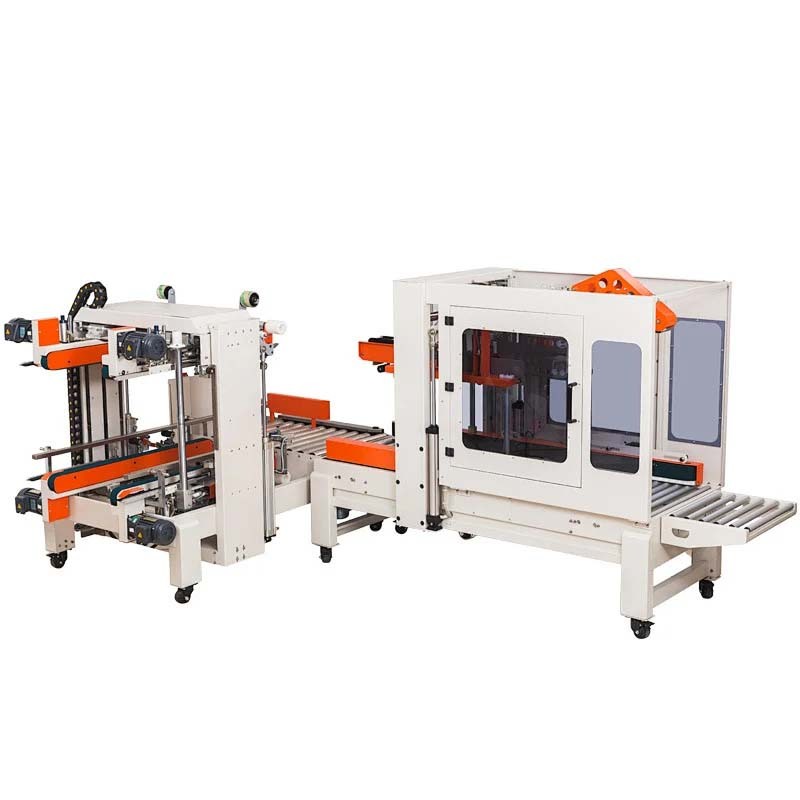

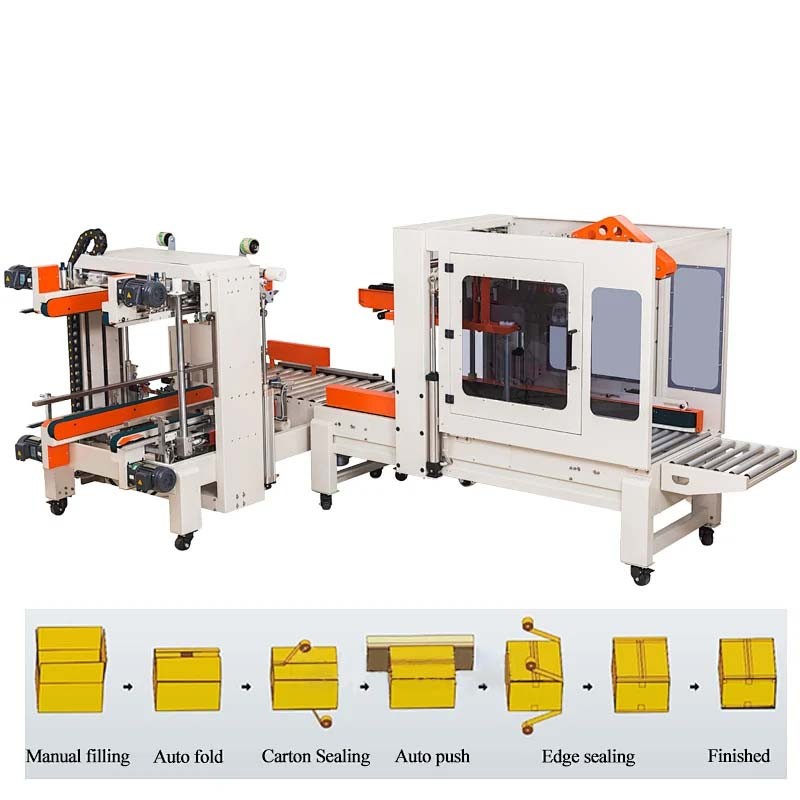

DQFXS7050 four-corner edge sealing automatic carton sealing machine and DQFXZ5050S automatic folding and lid sealing machine form an I-shaped carton sealing line, which can meet the needs of products that need to be reinforced on all sides of the carton, and complete the sealing on all sides and the middle once. DQ series box sealing machine can automatically sense the size of the box without manual adjustment. When the same specification is needed to seal the box, it only needs to lock the induction function to seal the boxes in batches. The machine is widely used in electrical, household, textile, food, daily necessities, medicine, chemical and other industries.
Specification:
|
Model |
DQFXZ5050S |
|
Power supply |
AC220V/50,AC110V/60Hz 420W |
|
Max. packing dimension |
500(W)* 500(H)* 700(L)mm |
|
Min. packing dimension |
200(W)*160 (H)*260 (L)mm |
|
Air Pressure |
2/3L, 5Kg/cm² |
|
Working table height: |
600-700mm |
|
speed |
18m/min |
|
Width of adhesive tape |
48mm. 60mm. |
|
Machine size |
L2889*W1056*H1815MM |
|
Model |
DQFXS7050 |
|
Power supply |
AC220V/50 1000W |
|
Max. packing dimension |
500(W)* 500(H)*700(L) mm |
|
Min. packing dimension |
260(W)*200 (H)*175 (L)mm |
|
speed |
19m/min |
|
Air Pressure |
2/3L,5kg/cm3 |
|
Width of adhesive tape |
48mm. 60mm. 76mm |
|
Weight of Package (kg) |
2.5-30 |
