Description
Product Description:

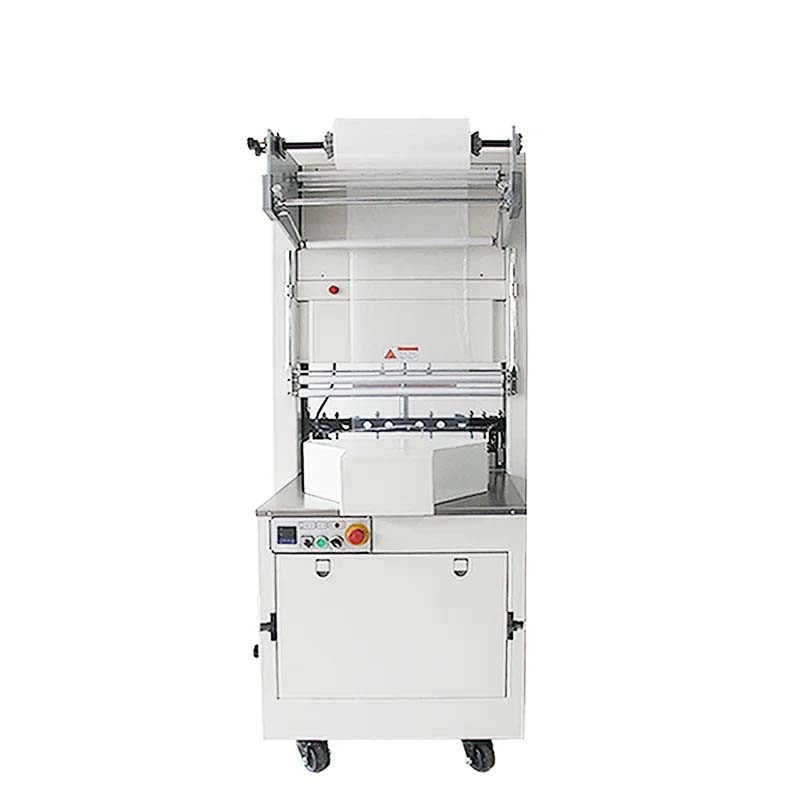

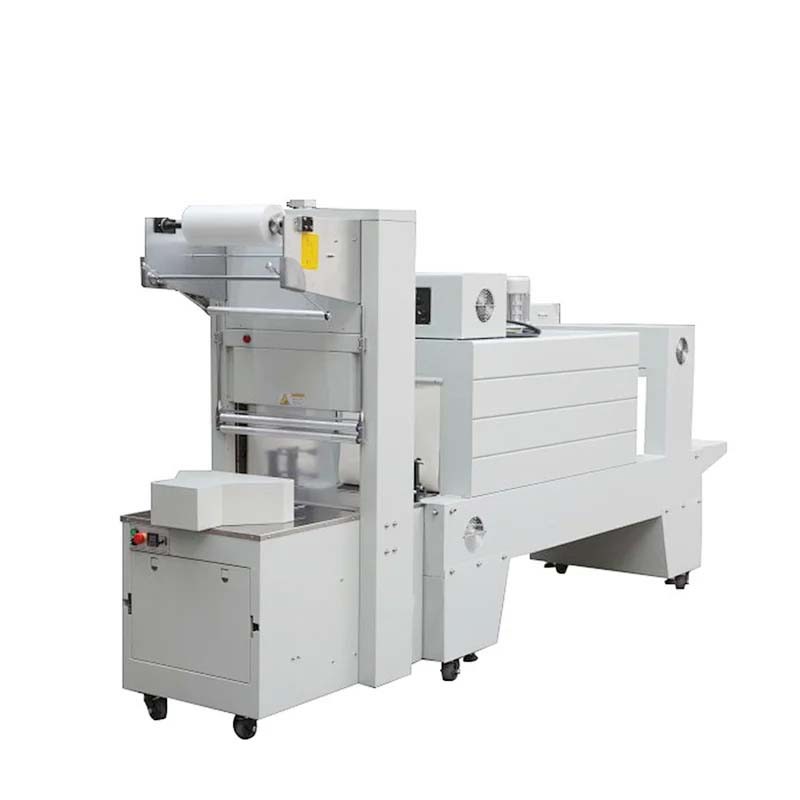

BZJ5038B semi-auto sleeve wrapper
is suitable for wrapping pop-cans, bottles, etc, with bottom tray or
without bottom tray, working with BSE-5040A jet PE-film shrinks tunnel or other
PE shrink tunnel BSE-5038. Enlarge packing range or custom-made machine according
to customers' requirements.
Characteristic:
1. Upper and down electromagnetic switch prevent
sealing mistakes, and protect the operator. 2. Every simple and
easy-to-adjust machine to match different packing sizes.
3. Simple operation and maintenance with high
packing efficiency.

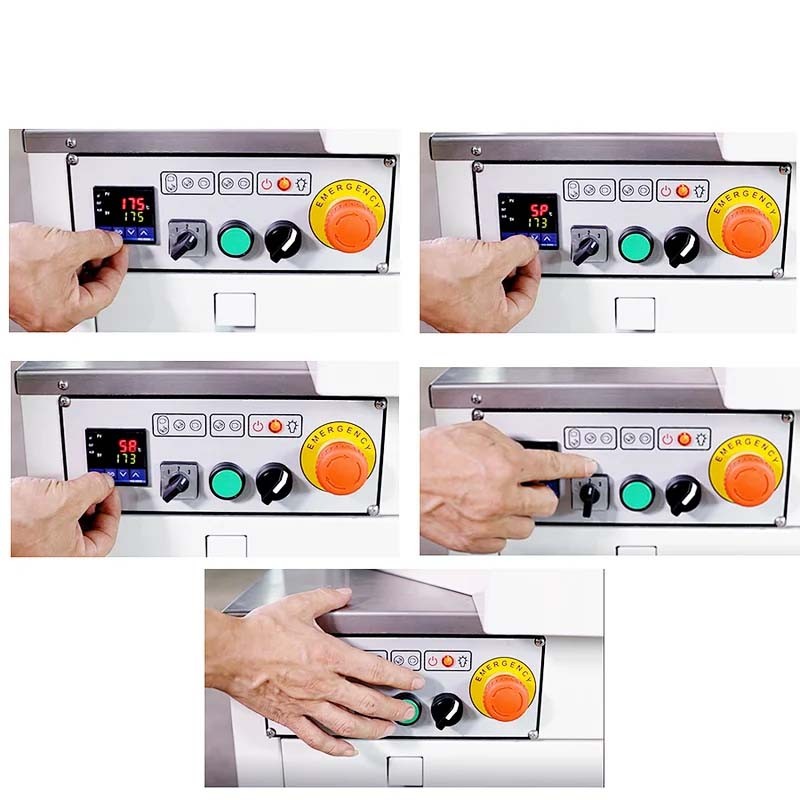

4. Schneider AC contractor and Intelligent
temperature controller performs stable.
5. Automatic alarm security system protects
machine and operator.
6. Large power conveyer motor, with step-less
speed regulating, ensures smooth feeding.
7. Two large power fans make the temperature of
the shrink tunnel even and stable, this ensures the excellent effect of
shrinking at one time.
8. Super cooling system cools the packing and
makes the figuration perfectly.
Model |
BSE -5040A |
Power supply |
3phase 220V/380V 50-60HZ |
Heater power |
20KW |
Conveyer speed |
0 -10m /minute |
Tunnel size(L*W*H) |
1500*500* 400mm |
Conveyer loading |
50KGS Max. |
Machine size |
2500*820* 1680mm |
Machine weight |
470KGS |
Shrink film |
PE,POF,PVC,PP |
Model |
BSE -5040A |
Power supply |
3phase 220V/380V 50-60HZ |
Heater power |
20KW |
Conveyer speed |
0 -10m /minute |
Tunnel size(L*W*H) |
1500*500* 400mm |
Conveyer loading |
50KGS Max. |
Machine size |
2500*820* 1680mm |
Machine weight |
470KGS |
Shrink film |
PE,POF,PVC,PP |
