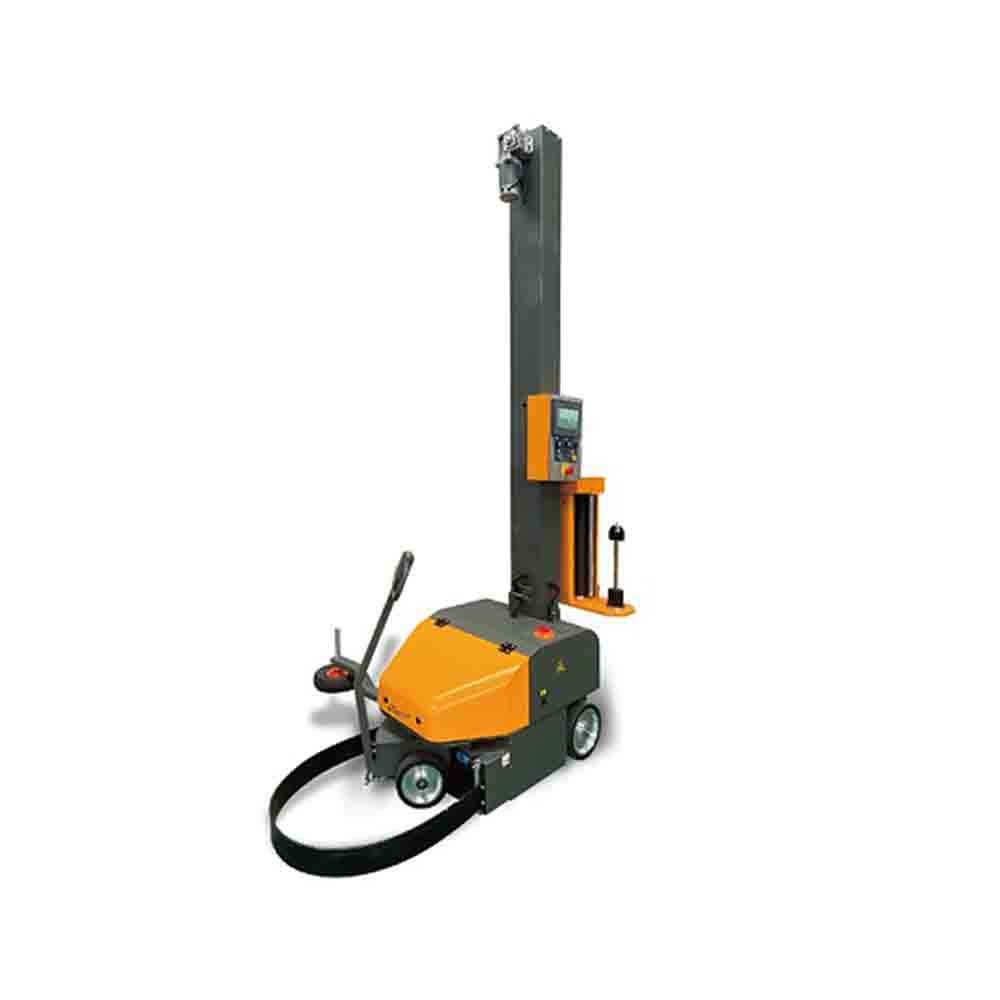

Self-propelled Stretch Wrapping Machine

Description

I. This equipment is a self-propelled pre-stretch film winding machine, through the use of winding film to wrap and fix the pallet of goods, the product is suitable for the packaging requirements of cargo consolidation storage, transportation and mechanized loading and unloading operations, widely used in foreign t Outline drawing and performance introduction

rade exports, food and beverage, irrigation, paper, dyestuff, plastic and chemical, glass and ceramics, mechanical and electrical castings and other products to collect the cost, improve production efficiency, but also to prevent damage to the goods in the handling process The product is designed and produced with reference to advanced foreign technology.

The product reference foreign advanced technology design and production, compact structure, beautiful appearance, advanced technology, the use of strict safety measures to protect the operation of the machine. At the same time, in order to facilitate the use of non-professionals to use this equipment, the use of measures to reduce the complexity of the operating panel, so that the operation of the equipment is simple to understand, convenient.

II. Features:

1、 Automatic walking pre-stretch winding operation, can work continuously for 8 hours. 2、 The control system is controlled by a special system to drive the motor by frequency converter and control the movement of mechanical drive mechanism to achieve stepless speed regulation, the system is stable and reliable, and the equipment is easy to use and maintain.

3, can automatically detect the height of the outer packaging, the number of equipment packaging laps, etc., can be preset for different packaging modes to meet the different packaging requirements of different types of packaging.

Film pulling mechanism: mechanical pre-stretching type (film pre-stretching ratio up to 1:2.5) 4. Because the machine is rotating and winding against the object, this model can meet the requirements of your company's pallet 0.5-1.6 meters, so choose this model is the most suitable and economical. And no object overweight trouble, packaging height can reach 2, 2.3, 2.6 meters (can be customized).

Main electrical configuration:

1、PLC programmable control, the number of winding layers and times can be set 2、Optical switch, automatically sense the height of the goods Self-propelled drive:

1、Walking speed is adjustable

2、The machine is running according to time control 3. Reinforced winding, rising and falling height setting Film system:

1、Rising and falling speed of film frame is adjustable respectively, and film feeding speed is adjustable

2、The number of top and bottom winding are controlled separately 3、The film system is controlled by following motion, one pull Safety design:

1、The whole system is easy and flexible for one person to operate:

2、The machine has its own wheels at the bottom for free movement, and also equipped with forklift shift position for easy movement

3, the machine is equipped with metal brushes, the machine is 24V DC power. If overload another circuit board insurance, to ensure that the machine is not damaged.

4、The machine is equipped with charging system inside the machine, and the operator will stop winding if he enters the winding work area by mistake.

5、No pollution emission, can work in super clean room.

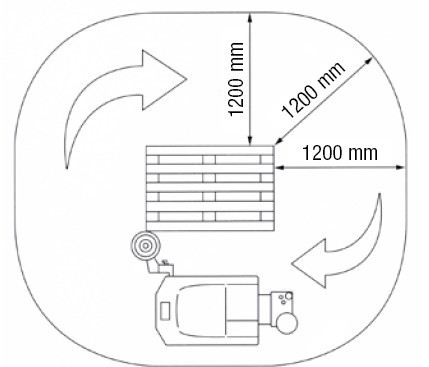

Package Action Track：
