Description
The newest model.

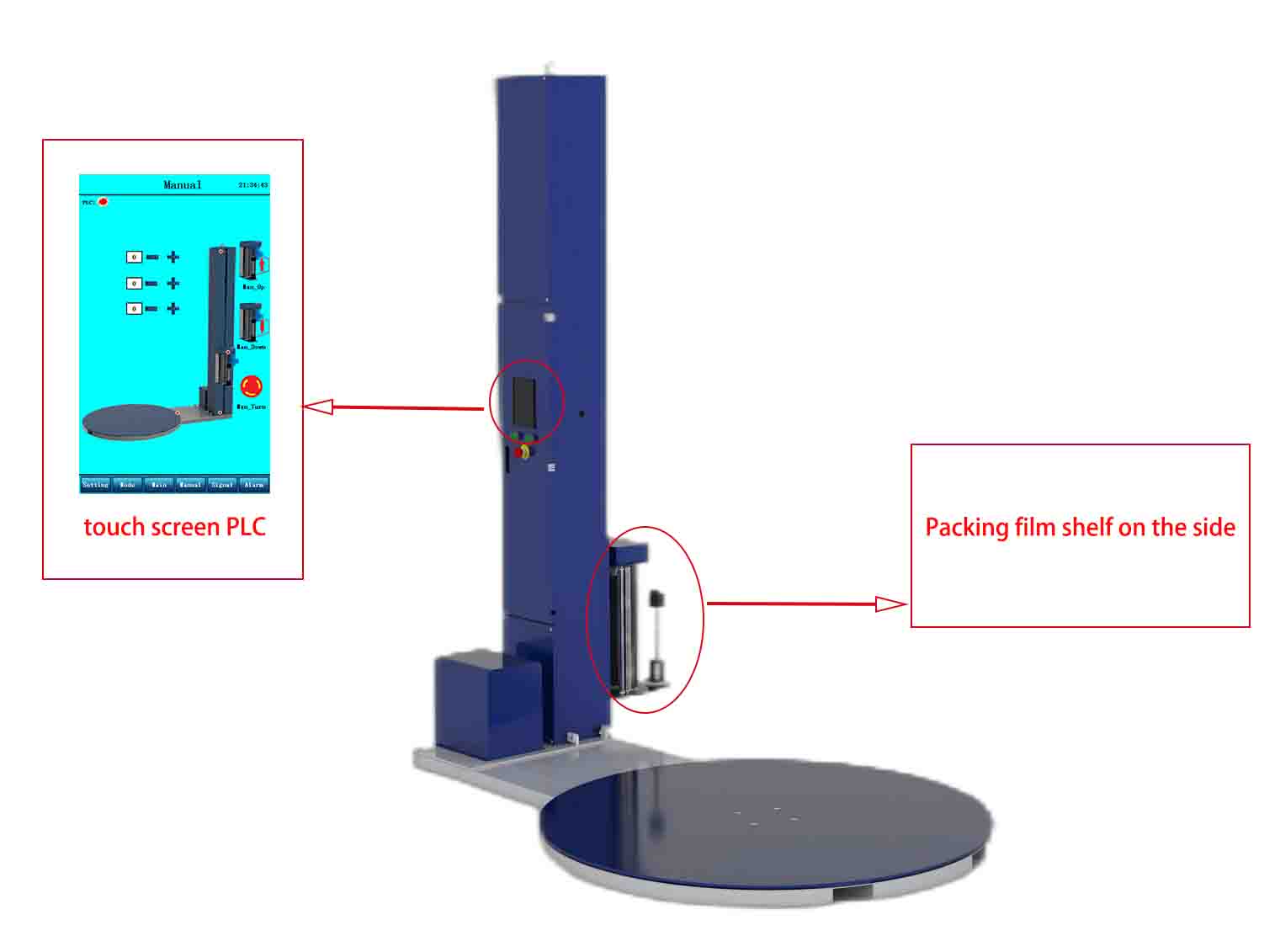

1 Packing film shelf on the side: more
convenient to install and use, more convenient to operate.
2 The newest touch screen PLC, equipped
with Chinese and English operation interface, more easy to operate.
Product Feature
Stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported to protect them from tip, spill or from being damaged. Additionally, wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff and drink etc.
Technical Specification
|
Turntable Diameter |
Length 500-1300mm, Width 500-1300mm |
|
Package height selection |
Height L-type 2000mm H-type 2400mm |
|
Rotary Table Diameter |
1650 mm |
|
Packaging efficiency |
20-40 pallets/hour |
|
Rotary table height |
78 mm |
|
Rotary table load |
2000 kg |
|
Machine weight |
550 kg |
|
Machine power |
1.5 kw |
|
Power supply voltage |
220 V/50HZ (single phase) |
|
Rotary speed |
0～12 rpm |
|
Overall Dimension |
L type L2535mmxW1650mmxH2260mm H type L2535mmxW1650mmxH2860mm |
|
Applicable film |
15~35 film for wrap-around film machine |
► Control systems, functions ：
PLC programmable control unit all-in-one;
Automatic sensing of the height of the goods;
Turntable frequency conversion speed regulation 0~12rpm adjustable;
Integral rotary sprocket, star six-wheel auxiliary support, rotary table automatic reset
The bottom of rotary disc is equipped with forklift slot
Membrane frame power pre-stretching mechanism, pre-stretching up to 250%;
Double chain drive structure, stable and reliable.
The speed of membrane frame rising, falling and film feeding are adjustable respectively;
Top and bottom winding number are controlled separately;
Film system follower mechanism, one pull;
Intelligent humanised parameter setting, easier and more convenient to operate.
The interface display can be set directly, and the control panel is clean and beautiful.
man-machine dialogue, the display screen at any time to show the operation of the equipment
Fewer wiring control methods, minimise failure rate
Powerful fault diagnosis and pause processing function

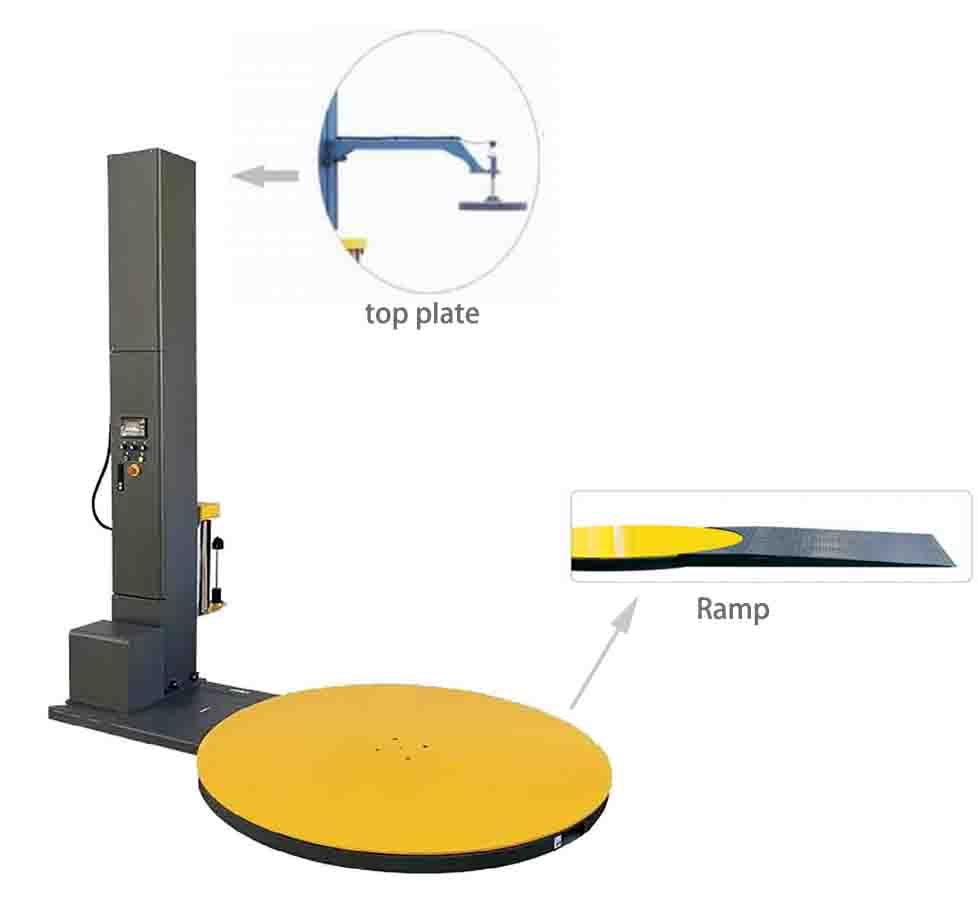

Options as below:
Ramp
Pneumatic top plate
Pneumatic film grabs and cut off system
H type with packing height: 2400mm
Turntable diameter: 1800mm, 2000mm
Turntable capacity: 2500kgs, 3000kgs
Machine color
