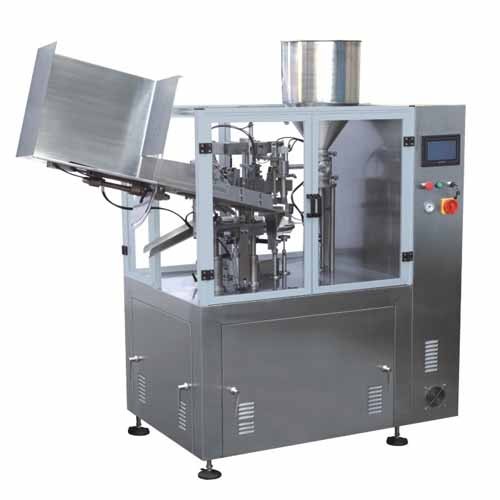

NF-60Z Fully Automatic Aluminum Tube Filling & Sealing Machine

Product Feature & Technical Specification

1.Applies to: metal tube

2.Operating speed: 60/min (max)

3.Filling volume: 5-250ml

4.Filling accuracy: ≤ ± 1%

5.Suitable hose length: 50-210mm

6.Suitable for hose diameter: Φ10-50mm

7.Feeding tube system: Inclined entire column feeding tube positions

8.Optional: saddle folding Sealing device can be achieved by adjusting the folding three sides and saddle fold

9.Optional: Mezzanine barrel insulation device

10.Optional: barrel internal mixing device

11.Optional: automatic control feeding device (pump)

12.Optional: finished tube output conveyor
