Description

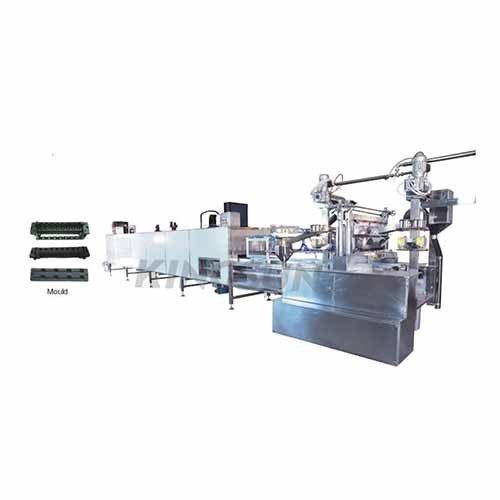

KS-150B/330B/450B/600B Automatic Lollipop Depositing Line
Introduction:
The KSB series lollipop depositing line is an advanced equipment to produce lollipop. The operation is controlled by a PLC/ program for the vacuum cooking, feeding, and depositing. It can be in-line injection, dosing and pre-mixing for the proportional addition of liquid colors, flavors, and acids. The line is composed of cookers, storage tank, micro-film cooker, depositing, moulds and industrial cooling tunnel. It can produce two color striped, two color layers, one color and central-filled lollipop. The line is a full-automatic plant equipped with an automatic stick insertion system.
The whole line is produced according to the
GMP standard of food machinery; it is not only an ideal equipment which
can produce out good quality products with the saving of both the manpower
and the space occupied, but also help the candy manufacturer pass the GMP,
HACCP, QS authentication easily.
Moreover, just change the moulds ,it is available to produce both hard candy
and lollipop on the same depositing line.
Technical specification:
|
Model |
KS-150B |
KS-300B |
KS-450B |
KS-600B |
|
Output |
150kg/h |
300kg/h |
450kg/h |
600kg/h |
|
Max Candy Weight |
Max.26g |
Max.26g |
Max.26g |
Max.26g |
|
Diameter |
Flat:18-28mm Ball: max.25mm |
|||
|
Specification Of The Stick |
60-100mm |
60-100mm |
60-100mm |
60-100mm |
|
Depositing Speed |
25-30n/min |
25-30n/min |
25-30n/min |
25-30n/min |
|
Steam Requirement |
250kg/h, 0.5-0.8MPa |
300kg/h, 0.5-0.8MPa |
400kg/h, 0.5-0.8MPa |
500kg/h, 0.5-0.8MPa |
|
Compressed Air Requirement |
0.2m³/min, 0.4-0.6MPa |
0.2m³/min, 0.4-0.6MPa |
0.25m³/min, 0.4-0.6MPa |
0.25m³/min, 0.4-0.6MPa |
|
Working Condition |
Temp20-25℃ Humidity55% |
Temp20-25℃ Humidity55% |
Temp20-25℃ Humidity55% |
Temp20-25℃ Humidity55% |
|
Electric Power Needed |
27kw/380V |
28kw/380V |
41kw/380V |
64kw/380V |
|
Total Length |
17m |
17m |
18m |
18m |
|
Gross Weight |
3500kg |
4000kg |
4500kg |
5000kg |
