Description
Summarize:

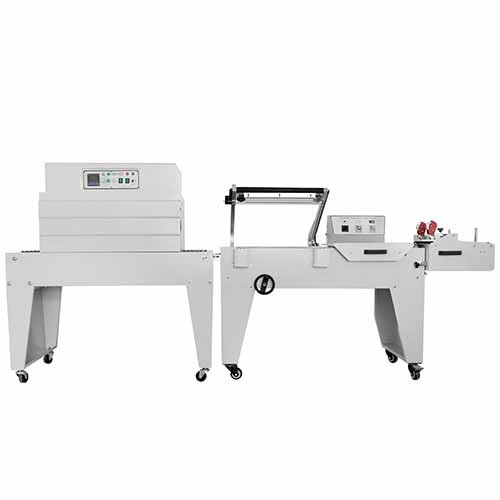

DFQA450 semi-auto L-type sealer and BS-A450 shrink tunnel are suitable for packing boxes, toys, electronic bricks and so on. The two machines can pack the products with a layer of plastic film, which makes the packaging more beautiful and firm.
Characteristic:
The
machine adopts heating and stickiness free seal knife, which ensures the
machine running well and without smoke.
The
time, transferring the products to the tunnel after sealing and cutting, is
adjustable.
Working
with shrink tunnel, high efficiency, more convenient.
Adopt
automatic overload protection device
Much
thicker roller for film support ensure the heavy loading ;nice design of the
needle wheel, making perfect shrink.
Handle
to adjust the height of the conveyor
Electric
leakage protection device
Nice
design of the sealing bar; long-term service
Specification:
|
Model |
DFQ450A |
Model |
BS-A450 |
|
Voltage |
220V 50-60HZ |
Voltage |
220-240V/50-60HZ |
|
Heater power |
1KW adjustable |
Heater Power |
9kW |
|
Seal-cut time |
0-3s |
Conveyor speed |
0-10m/min |
|
Max sealing size(L*W) |
500*450mm; L+H≤550mm,W+H≤450mm |
Workroom size(L*W*H) |
800*450*250mm |
|
Max conveyor loading |
8kg |
Max conveyor loading |
10kg |
|
Packing size(L*W*H) |
1470*820*970mm |
Machine weight |
100kg |
|
Machine weight |
95kg |
Packing size |
1310 x 720 x 880mm |
|
Cutting film |
POF,PVC,PP,PE |
Shrink film |
POF,PVC,PP |
|
|
|
|
|
