Description
Product Feature:

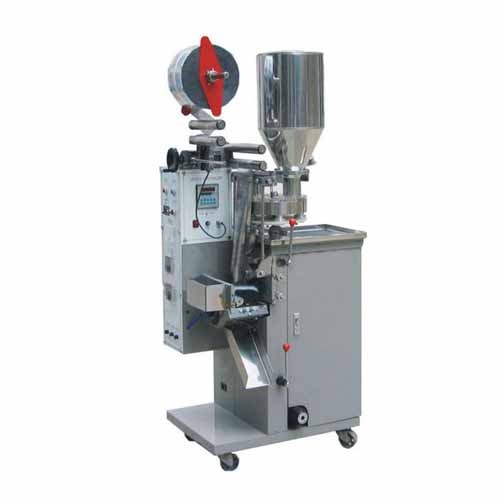

Granule Packing Machine is suitable for packaging of soft bags of granular materials in the field of food, daily chemical and medicine etc. It adopts stepless bag length adjustment and adjustable volumetric cups control filling. Its suitable for single Paper/PE, Cellophane/PE, Plated aluminum/PE, BOPP/PE, Nylon/PE, and other heatable sealed laminated film as packaging material.
Technical Specification
|
Model |
DXDK-20II |
DXDK-40II |
DXDK-150II |
|
Voltage (V/HZ) |
AC 220V/50HZ, or 110V/60HZ |
||
|
Power (W) |
1300 |
1700 |
|
|
Packing volume (ml) |
0.5~20 |
5~40 |
30~150 |
|
Packing speed (bags/min) |
50~100 |
50~90 |
35~75 |
|
Bag width (mm) |
25~70 |
30~80 |
30~110 |
|
Bag length (mm) |
35~85 |
50~110 |
80~150 |
|
Dimension (L x W x H) mm |
790×600×1780 |
800×700×1900 |
|
|
Net Weight (Kgs) |
350 |
350 |
400 |
|
Model |
DXDK-500II |
DXDK-1000II |
DXDK-2000II |
|
Voltage (V/HZ) |
AC 220V/50HZ, or 110V/60HZ |
||
|
Power (W) |
1500 |
1700 |
2000 |
|
Packing volume (ml) |
20~500 |
50~1000 |
50~2000 |
|
Packing speed (bags/min) |
35~70 |
25~50 |
15~35 |
|
Bag width (mm) |
30~150 |
50~200 |
50~220 |
|
Bag length (mm) |
50~220 |
50~250 |
50~300 |
|
Dimension (L x W x H) mm |
1002×860×1900 |
1002×860×2050 |
|
|
Net Weight (Kgs) |
400 |
500 |
550 |
