Description
Product
Description:

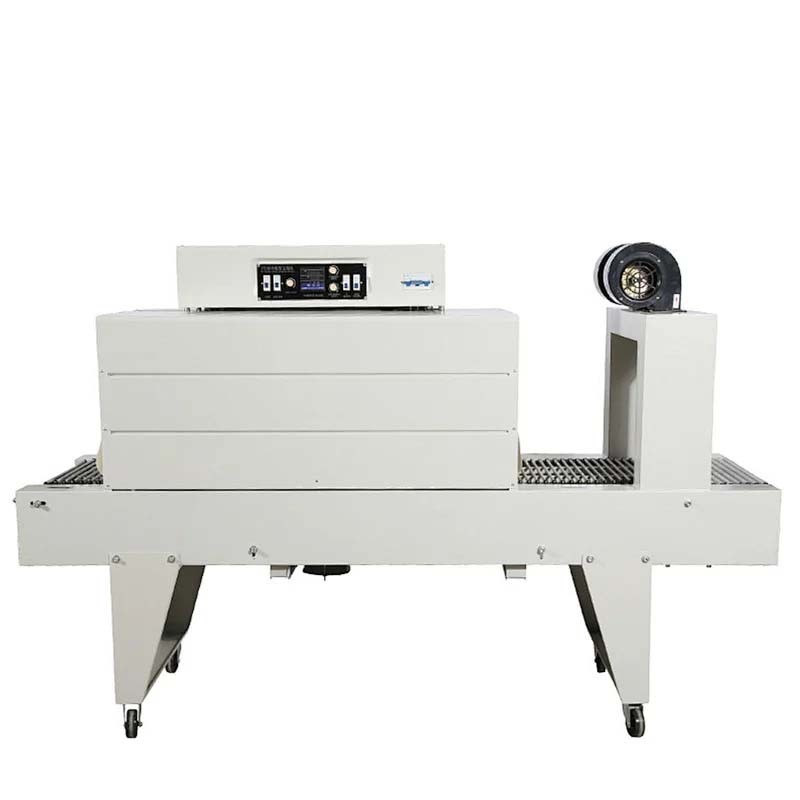

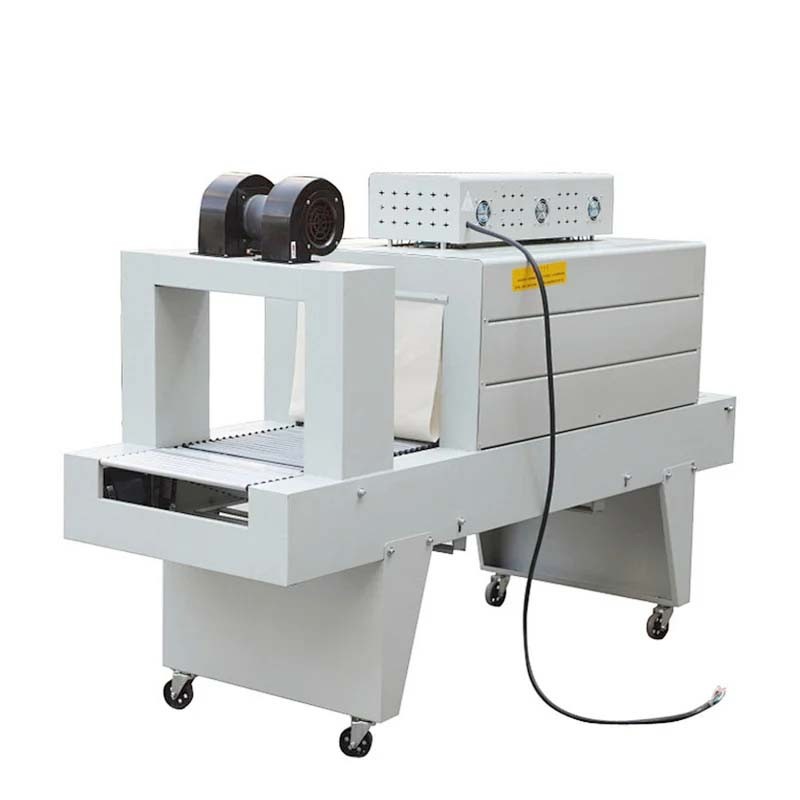

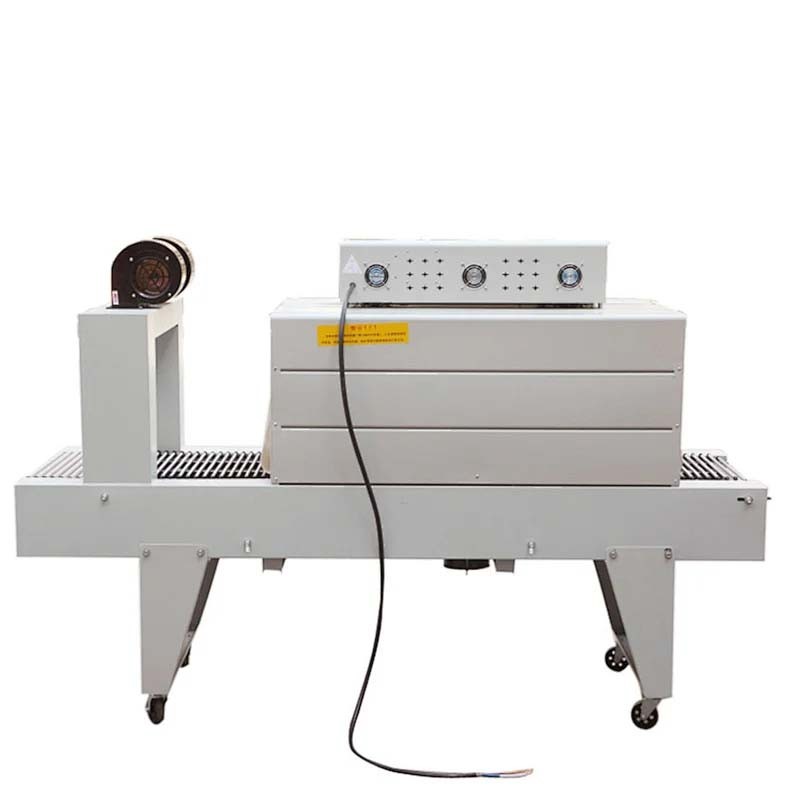

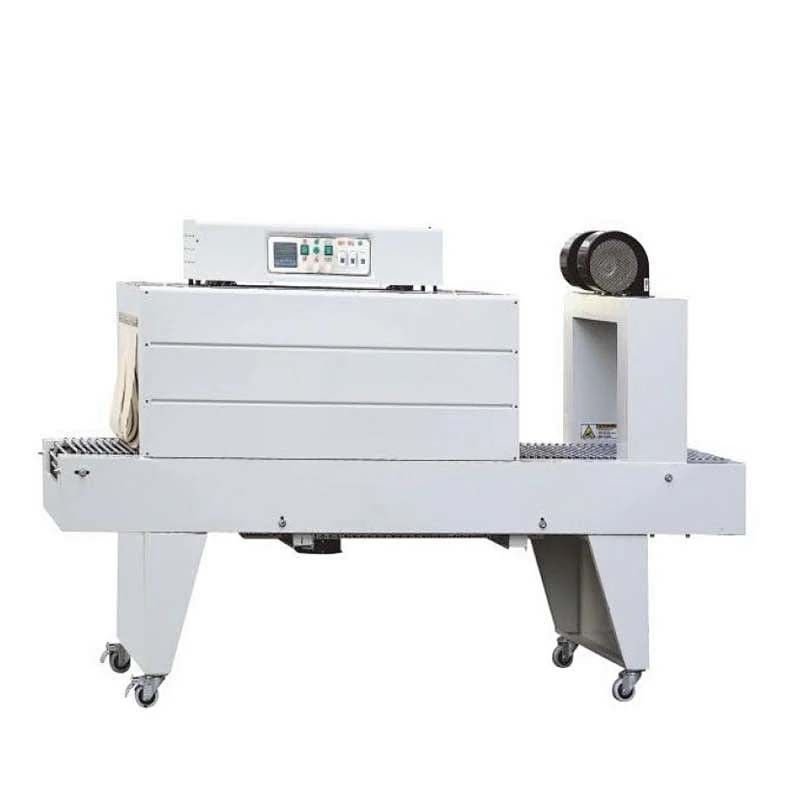

The BSE series PE film shrink packaging machine
is designed especially for PE shrink film.
However it is suitable for other types
shrink films.
The machine adopts digital temperature
controller, which makes operation easier. Quartz heating pipes are located on
the top, bottom and sides of the shrinking tunnel. Two fans in electricity box
cools down electricity box in order to protect electronics. Conveyor motor
cools down by fan underneath.
The powerful fan produces even hot airflow
inside of shrink tunnel.
The speed of the conveyer is adjustable.
Conveyor has option of chain roller and iron net
conveyor for choice.
Specification:
Model |
BSE4535 |
Power supply |
3phase 220V/380V 50-60HZ |
Heater power |
18KW Adjuster |
Conveyer speed |
0-10m/minute |
Tunnel size(L*W*H) |
1200*450*350mm |
Conveyer loading |
25KGS MAX. |
Machine size |
2200*730*1440mm |
Machine weight |
220KG |
Shrink film |
PE,POF,PVC,PP |
