Description

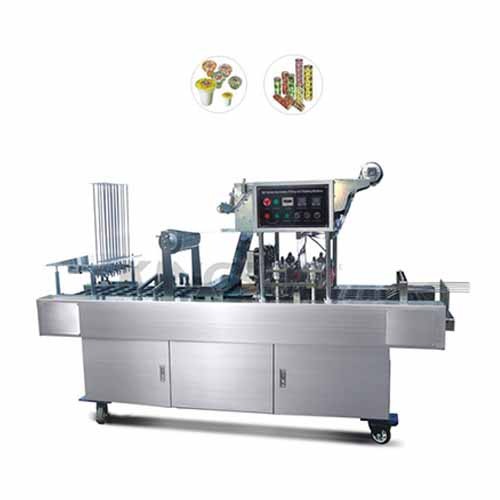

BG-A Series Automatic Cup Fill-Seal-Cut Machine
Product Feature:
BG32A (2 cups)/BG60A (4 cups) automatic fill-seal-cut machine is widely used in filling and sealing various kinds of plastic cups for liquid. It can automatically finish the processes of filling, sealing, film cutting, code printing, sterilizing in ultraviolet radiation and falling cup etc. In addition, it can be customized according to your special requirement.
BG32 (2 cups) does not have function of automatic cup dropping in comparison with BG32A.
Technical Specification:
|
Model |
BG60A |
BG32A |
BG32 |
|
Number of cups |
4 cups |
2 cups |
2 cups |
|
Power source |
220V/380V/50HZ 3.5kw |
220V/380V/50HZ 2.5kw |
220V/380V/50HZ 2.5kw |
|
Capacity |
60-64cups/min |
30-32cups/min |
30-32cups/min |
|
Temperature |
0-300℃ |
0-300℃ |
0-300℃ |
|
Seal material |
PE, PP, PET/PE |
PE, PP, PET/PE |
PE, PP, PET/PE |
|
Dimension |
2360X850X1550mm |
2150X700X1550mm |
1850X600X1450mm |
|
Weight |
500KG |
400KG |
350KG |
