Description
Product Feature

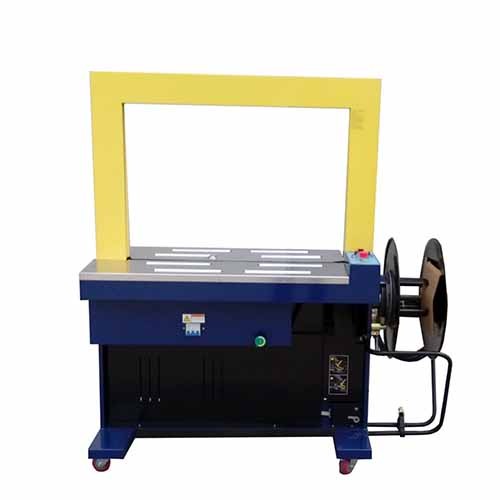

This machine is the most general-purpose type,
featuring a high strapping speed and a low failure rate The amount of strap
storage can be freely adjusted based on the dimensions of the bow frame and the
dimensions can also be selected freely according to the customer's needs
Application:
Oiling is completely unnecessary, which
simplifies maintenance
Style of bundling: Single-and multiple-band parallel binding, both manual and
automatic continuous bundling, spherical switch, foot switch
Technical Specification
|
Model |
DBA-200 |
|
Voltage |
220V/50HZ, 1P or 380V/50HZ, 3P |
|
Applicable Strap |
Polypropylene Width;9,10,12,16,19mm |
|
Arch Size |
Width:550~2850mm; Height:250~1800mm (standard size 850W x 600H) |
|
Speed |
2.3sec/ cycle (arch W850 x H600) |
|
Tension |
5~80kg |
|
Dimension (L x W x H) |
1410 X 600 X 1540 (arch width 850 x height 600) |
|
Weight |
215Kgs |
