Description
Application

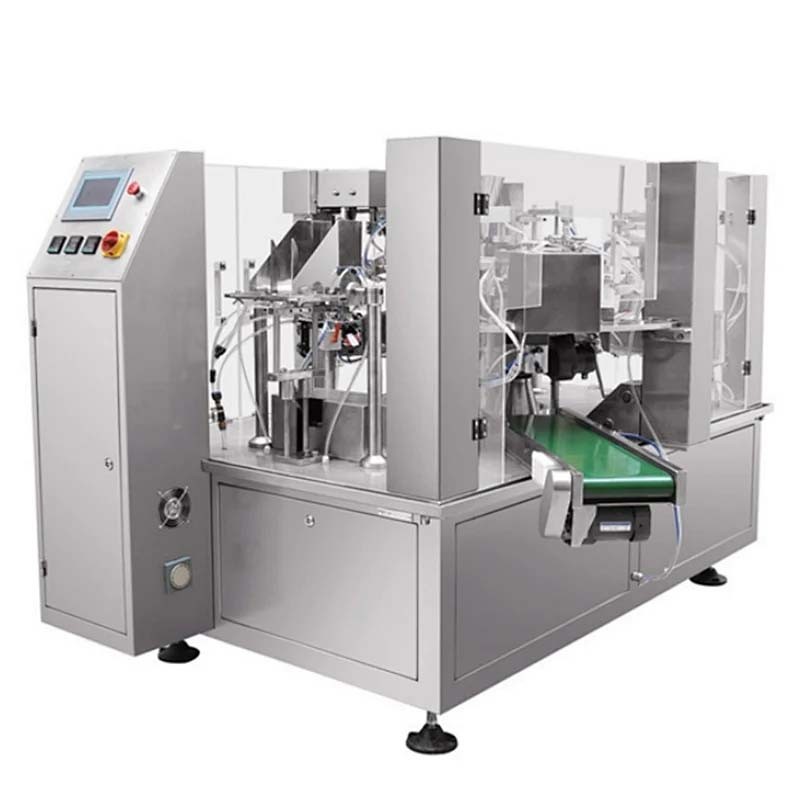

High speed rotary packaging machine is suitable for packaging all kinds of materials that can be put into bags and pouches, such as solid, liquid, liquid, thick liquid, powder, gain and so on.
Characteristic
1. High quality and performance, the frame is made of 1.5mm thickness 304 stainless steel.
2. Volume can be changed easily by adjusting handle in the paste filler.
3. The one clamp of the R model can adjust eight working stations at meantime and it takes about 1 minute
4. Good stability and also good machine exterior and it own extensive range in filling productions
5. Own extensive range in filling productions
6. Easy to operate by touch-sensitive screen(Siemens), PLC(Siemens) and electric control system
7. Friendly man-machine interface
8. Speed can be adjusted by frequency conversion within the range
9. Perfect sealing system and safety system and so on
10. Good safety system and so on.
Specifications
| Model | MR8-260R |
| Bags Size | Width:130-260mm Length:100-400mm |
| Filling Volume |
10-1500g（Depending on type of products） Can be customized |
| Capacity |
10-25 bags/min （The speed depends on type of products） |
| Package Accuracy | Error≤±1 |
| Total Power | 3.5KW（220V/380V, 3PH, 50HZ） |
| Dimension | 1460*2500*1400mm (L*W*H) |
| Weight | 1800kg |
| Compress air requirement | ≥0.8m³/min supply by user |
| Pouch type | All type of heat sealable preformed side seal bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout etc. |

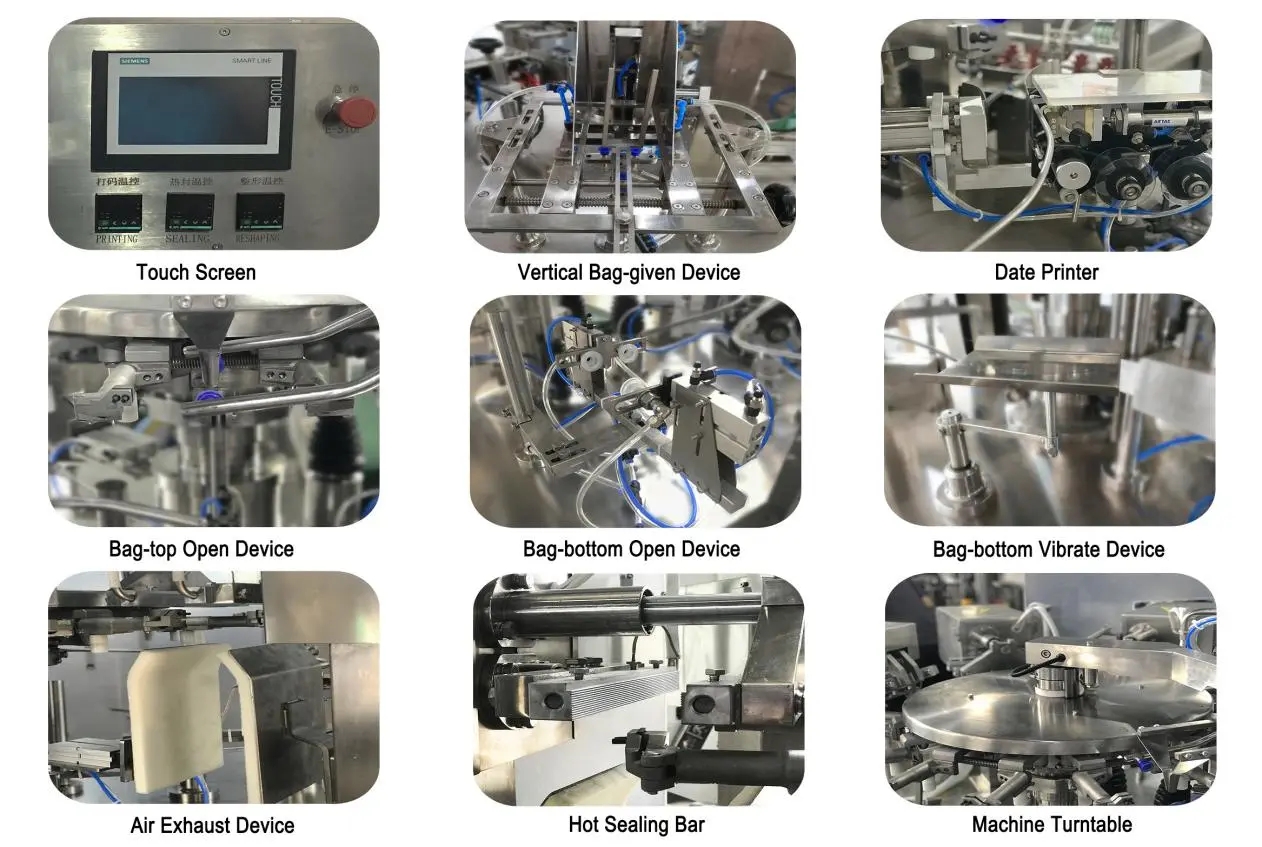

Machine details:
'
Sample Bag
