DPP-G series Plate type AL-plastic blister packing machine

DPP-G series Plate type AL-plastic blister packing machin
Inquiry Send Email

Description

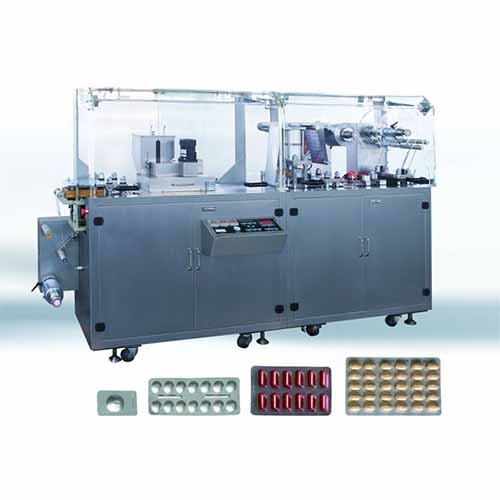

DPP-G series Plate type AL-plastic blister packing machine

Product Feature:

This machine is widely absorbing the feedback information from customers and the advantages of same-type products at home and abroad. It has the features such as complete functions, advance technology, stable performances and beautiful appearance. It can be substituted for the import equipment of same type and has been awarded the national patent.

1.Adjustable stroke: That can change the sheet size freely and suitable for the production of various kinds of specifications.

2.Plate-type construction: It is suitable for packing the matter of any shape such as the special matters of square, triangle and oval shape etc.

3.Positive pressing formation: That makes the bubble, cap wall uniform, stiff and smooth and makes the packing finished products more beautiful.

4.Shaping, feeding, heat-sealing, pressing, lot number printing and cutting can be completed automatically.

5.Material recovery device: It can automatically recover a whole roll of waste material.

6.Applications: It is suitable for the combined sealing packing of the bubble-cap Al-plastic for capsules, tablets, injectors, sweets, hardware and other matters in the pharmaceutical factory, hospital, food and electronic industries.

Technical Specification:

Model

DPP-140G

DPP-250G

Blanking Frequency

20-40 Times/min

20-40 Times/min

Layout Dimensions Series

57×80mm

57×80mm

Adjustable range of stoke

40-110mm (Control freely)

40-110mm (Control freely)

Air compressor

≥0.15 m3/min

≥0.15 m3/min(Provide for yourself)

Power of main machine

1.5kw

1.5kw

Heat Power

2.6kw

3.1kw

Rated Frequency

50 Hz

50Hz

Rated Power Supply

AC380V(3 phases 4 lines)

Dimension (Lx W x H)

2400×710×1360mm

2950×850×1500mm

Weight

900kg

1200kg
