Description

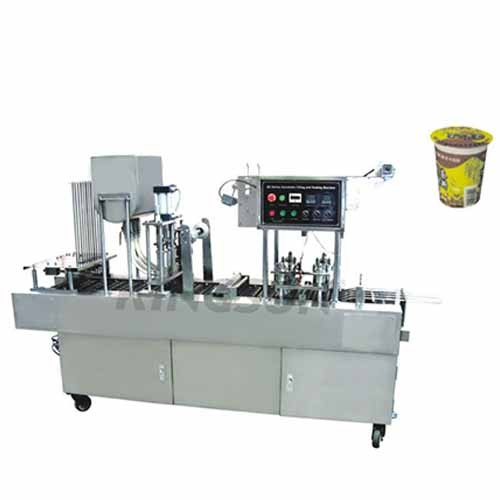

BG-P series Automatic Cup Fill-Seal-Cut Machine
Product Feature:
BG32P (2 cups)/BG60P (4 cups) cups automatic fill-seal-cut machine is widely used in
filling and sealing various kinds of plastic cups for sticky liquid and paste material. It can
automatically complete the processes of cup-dropping, filling, sealing, film cutting, code
printing, sterilizing in ultraviolet radiation and cup-falling in one operation. P model is
especially designed for filling sticky liquid or paste material, such as fruit jam, yoghourt,
hot chocolate liquid etc. The filling unit is also able to be improved to fill powder and
granule, such as coco powder, baking power, peanut and soybean etc. In addition, it can
be customized according to your special requirement.
Technical Specification:
|
Model |
BG32P |
BG60P |
|
Number of cups |
2 cups |
4 cups |
|
Power source |
220V/380V/50HZ 2.5kw |
220V/380V/50HZ 3.5kw |
|
Capacity |
30-32 cups/min |
60-64 cups/min |
|
Temperature |
0-300℃ |
|
|
Seal material |
PE, PP, PET/PE |
|
|
Dimension |
2150X700X1650 mm |
2360X820X1650 mm |
|
Weight |
440 KG |
580 KG |
